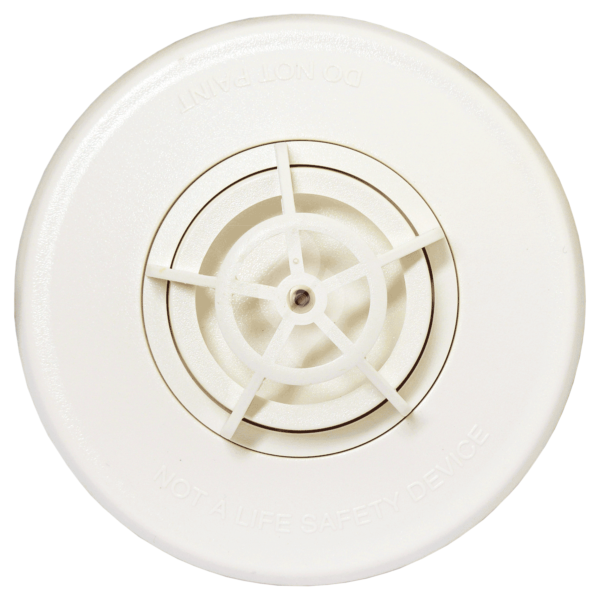

Simplex Analog Heat Sensor (4098-9733EA)

$62.30
True Alarm heat sensors are self-restoring and provide rate compensated, fixed temperature sensing, selectable with or without rate-of-rise temperature sensing. Due to its small thermal mass, the sensor accurately and quickly measures the local temperature for analysis at the fire alarm control panel.
SKU
4098-9733EA

FSP Can Supply Simplex TrueAlarm Analogue Heat Fire Detector (4098-9733EA) provide fixed temperature, rate compensated sensing with or without rate-of-rise temperature sensing.

The heat sensor can quickly and accurately measure the local temperature, due to its small thermal mass, which the fire alarm control panel can then analyse and action when required. The sensors are also self-restoring after an alarm condition has been resolved, no additional action is required to restore the sensor to operational.

The fire alarm control panel can select the rate-of-rise for either 8.3° C (15° F) or 11.1° C (20° F) per minute.

Fixed temperature sensing is independent of rate-of-rise sensing and programmable to operate at 135° F (57.2° C) or 155° F (68° C). In a slow developing fire, the temperature may not increase rapidly enough to operate the rate-of-rise feature. However, an alarm will be initiated when the temperature reaches its rated fixed temperature setting.

TrueAlarm heat sensors can (dependant upon control panel) also be utilised as a device to monitor for temperatures in the range from 0° C to 68° C (32° F to 155° F). This feature could for example provide freeze warnings or HVAC over temp problems.

True Alarm heat sensors are self-restoring and provide rate compensated, fixed temperature sensing, selectable with or without rate-of-rise temperature sensing.

Due to its small thermal mass, the sensor accurately and quickly measures the local temperature for analysis at the fire alarm control panel.

Rate-of-rise temperature detection is selectable at the control panel for either 15° F (8.3° C) or 20° F (11.1° C) per minute.

Fixed temperature sensing is independent of rate-of-rise sensing and programmable to operate at 135° F (57.2° C) or 155° F (68° C).

In a slow developing fire, the temperature may not increase rapidly enough to operate the rate-of-rise feature. However, an alarm will be initiated when the temperature reaches its rated fixed temperature setting.

TrueAlarm heat sensors can be programmed as a utility device to monitor for temperature extremes in the range from 32° F to 155° F (0° C to 68° C). This feature can provide freeze warnings or alert to HVAC system problems. (Refer to specific panels for availability.)

Part Number 4098-9733EA

Simplex TrueAlarm Black Fire Detector Technical Specifications and Information

Sensor Type:Heat
Compatible Bases4098-9792, 4098-9789, and 4098-9791
Width: 124mm
Height: 60mm
Communications and Sensor Supervisory PowerMAPNET II or IDNet, auto-select, 24-40 VDC w/data, 400 μA typical, 1 address per base
Communications ConnectionsScrew terminals for in/out wiring, #18 to #14 AWG
Remote LED Alarm Indicator Current1 mA typical, no impact to alarm current
Remote LED Alarm Indicator and Relay ConnectionsColor coded wire leads, #18 AWG
SSL Listing No.afp-1202/1203 €“ Heat, afp-1225 €“ Photo, afp-1246 - Ion
Operating Temperature Range with
4098-9717 or 4098-9733 base(s)
32° F to 122° F (0° C to 50° C)
Operating Temperature Range with
4098-9714 base(s)
15° F to 122° F (-9° C to 50° C)
Humidity Range10 to 95% RH
Air Velocity Range with 4098-9714, Photoelectric Sensor0-2000 ft/min (0-610 m/min)
Air Velocity Range with 4098-9717, Ionization Sensor0-200 ft/min (0-61 m/min)
Housing ColorFrost White / Black
Simplex TrueAlarm Analogue Heat Detector 4098 9733 dimensions

Simplex TrueAlarm Fire Detector Black Data Sheet

Spec Sheet Icon Simplex TrueAlarm Fire Alarm Detectors 4098 9717 9714 9733 Datapage
