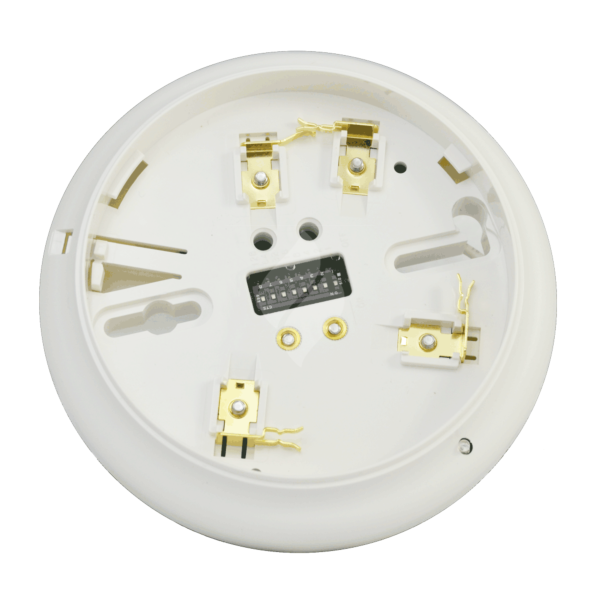

Simplex TrueAlarm Analogue Addressable Detector Base (4098-9789EA )
$83.22
TrueAlarm detector bases contain integral addressable electronics that constantly monitor the status of the detachable photoelectric, ionisation, or heat detectors. Each detector’s output is digitised and transmitted to the system CIE every four seconds.
SKU
4098-9789EA
FSP Can Supply Simplex TrueAlarm Analogue Addressable Detector Base (4098-9789EA) which contain addressable electronics to allow the constant monitoring the various types of detachable detectors, such as: photoelectric, ionisation, or heat.
Each detector's output is digitised and transmitted to the system Panel every four seconds.
Since TrueAlarm detectors use the same base, different detector types can be easily interchanged to meet specific location requirements, for example, during building construction, or when conditions are temporarily dusty. Instead of covering the smoke detectors(causing them to be disabled), heat detectors may be installed without reprogramming the CIE.
Although the CIE will indicate an incorrect detector type, the heat detector will operate at a default sensitivity maintaining building protection at that location.
The 4098-9789EA can be used in areas that may experience an increased moisture level, eg under eaves.
Part Number 4098-9789EA
| Operating Voltage: | 24 to 40Vdc* |
| Quiescent Current (max): | 400µA |
| Alarm Current (max): | 3.2mA |
| Relative Humidity: | 10% to 95% (n/cond) |
| Ambient Temperature: | 0 to +55°C |
| Dimensions: | 124 dia x 35mm |
| ActivFire Listed: | afp-1225 & 1246 |
Simplex TrueAlarm Detector Base Black Data Sheet
Simplex TrueAlarm Fire Alarm Detectors 4098-9717 4098-9714 4098-9733 Datapage
