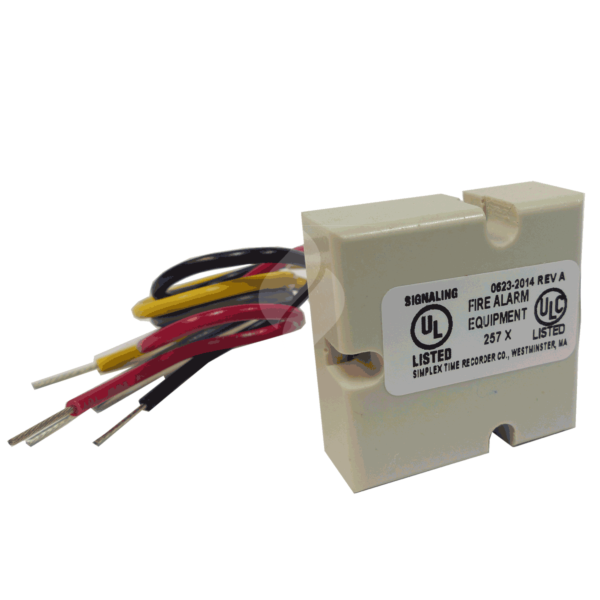

Simplex IDNet Supervised IAM (4090-9051)

$90.71
DNet addressable communications supply both data and power over a single wire pair to provide
SKU
4090-9051

This MAPNET II / IDNet addressable device is an encapsulated version of 4090-9001. Like all other Simplex Individual addressable modules (IAMs), it gets both power and communications supplied by a two wire IDNet circuit.

It provides location specific addressability to a single initiating device (such as single station smoke detector alarm contacts or heat detector contacts) or multiple devices at the same location by monitoring normally open dry contacts and the wiring to an end-of-line resistor.

Part Number 4090-9051



Specification

Operating Voltage:24 to 40Vdc*
Operating Current:170 mA
End-of-Line Resistor:6k8 Ohm 0.5W
Operating Temp:0 to 49°C
Relative Humidity:10% to 93% (non-cond)
Dimensions:40 x 40 x 14 mm
4090-9051 IDNet Supervised IAM Datapage
