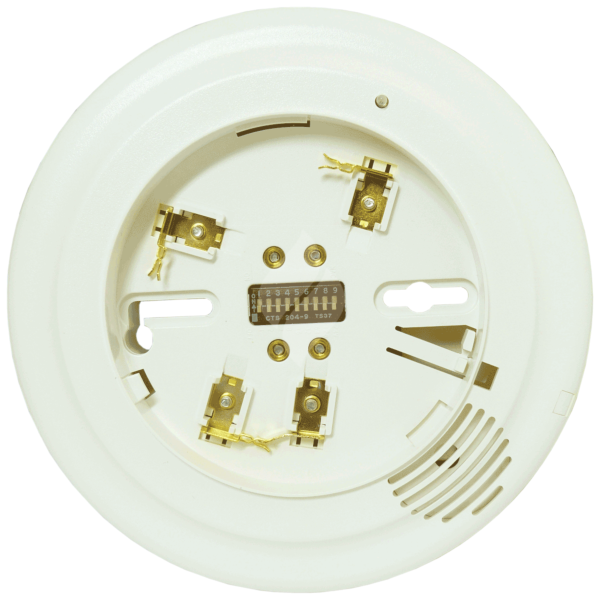

Simplex True Alarm Base with Sounder 4098-9794EA
$185.52
The TrueAlarm sounder base has a built-in
Piezoelectric sounder that provides a high 90dBA
output with low 17mA current requirements.
Used with the interchangeable TrueAlarm
detectors (photoelectric, heat, or ionisation) the
sounder can be powered from 24 Vdc or from a
compatible Notification Appliance Circuit (NAC)
and synchronised coded/temporal coded by
communications* or by the NAC. The sounder can
be manually activated from the CIE. Analogue
detector information is digitally communicated to
the control panel via MAPNET IIâ„¢ or IDNetâ„¢, twowire
communications**. Detector information is
processed by the CIE to determine detector status
SKU
4098-9794EA
The TrueAlarm sounder base has a built-in Piezoelectric sounder that provides a high 90dBA output with low 17mA current requirements. Used with the interchangeable TrueAlarm detectors (photoelectric, heat, or ionisation) the sounder can be powered from 24 Vdc or from a compatible Notification Appliance Circuit (NAC) and synchronised coded/temporal coded by communications* or by the NAC.
The sounder can be manually activated from the CIE.
Analogue detector information is digitally communicated to the control panel via MAPNET IIâ„¢ or IDNetâ„¢, two-wire communications**. Detector information is processed by the CIE to determine detector status.
The sounder base has a built-in magnetic test feature and is for use with Simplex CIEs model 4010/4020/4100/4120, and Universal Transponders. Optional accessories include remote alarm LED indicator on single gang plate and an alarm LED tracking relay
Specifications
| Sounder Operating Voltage: | 24 to 40Vdc* |
| Relay Voltage: | 18 to 32Vdc |
| Quiescent Current (max): | 270µA |
| Alarm Current (max): | 17mA |
| Sound Pressure Level: | 90dBA @ 3m |
| Relative Humidity: | 10% to 95% (n/cond) |
| Ambient Temperature: | 0 to +55°C |
| Dimensions: | 124 dia x 35mm |
| ActivFire Listed: | afp-1246 |
