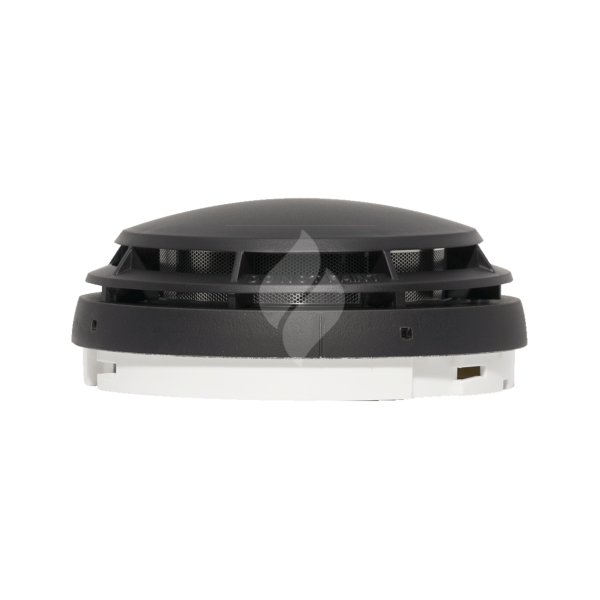

Simplex TrueAlarm Analogue Photoelectric Smoke Detector Black (4098-9714EBLK)

$237.59
Simplex TrueAlarm Analogue Photoelectric Smoke Detector Black (4098-9714EBLK)
SKU
4098-9714EBLK

FSP Can Supply Simplex TrueAlarm Analogue Photoelectric Smoke Detector Black (4098-9714EBLK) sensors use a pulsed infrared LED and a silicon photodiode receiver, which helps provide accurate low power smoke sensing.

Each TrueAlarm photoelectric sensor has seven levels of sensitivity from 0.2% to 3.7% per foot of smoke obscuration, which is monitored and adjusted at the fire alarm control panel.

Due to its photoelectric operation, air velocity is not normally a factor, except for impact on area smoke flow.

The Sensor head has been architecturally styled and uniquely designed to provide 360° smoke entry with a louvered design of the chamber enclosure to enhance smoke capture by directing flow to chamber. The chamber entrances are designed and styled to have minimal visible openings when ceiling mounted.

TrueAlarm multi-sensor 4098-9754EA combines the TrueAlarm photoelectric smoke sensor with a fast-acting and accurate TrueAlarm thermal sensor to provide both features in a single sensor/base assembly. Analog information from each sensor is digitally communicated to the control panel where it is analysed.

Photoelectric sensor input is stored and tracked as an average value with an alarm or abnormal condition being determined by comparing the sensor's present value against its average value.

Thermal data is processed to look for absolute or rate-of-rise temperature as desired.

Monitoring each photoelectric sensor's average value provides a software filtering process that compensates for environmental factors (dust, dirt, etc.) and component aging.

The result is a significant reduction in false or nuisance alarms caused by shifts in sensitivity.

Part Number 4098-9714EA

For use with Simplex:

  • 4010, 4020, 4100, and 4120 series control panels
  • Universal Transponders and 2120 TrueAlarm CDTs equipped for MAPNET II operation

Simplex TrueAlarm Black Smoke Detector Technical Specifications and Information

Sensor Type:Photoelectric
Compatible Bases4098-9792, 4098-9789, and 4098-9791
Width: 124mm
Height: 54mm
Communications and Sensor Supervisory PowerMAPNET II or IDNet, auto-select, 24-40 VDC w/data, 400 μA typical, 1 address per base
Communications ConnectionsScrew terminals for in/out wiring, #18 to #14 AWG
Remote LED Alarm Indicator Current1 mA typical, no impact to alarm current
Remote LED Alarm Indicator and Relay ConnectionsColor coded wire leads, #18 AWG
SSL Listing No.afp-1202/1203 €“ Heat, afp-1225 €“ Photo, afp-1246 - Ion
Operating Temperature Range with
4098-9717 or 4098-9733 base(s)
32° F to 122° F (0° C to 50° C)
Operating Temperature Range with
4098-9714 base(s)
15° F to 122° F (-9° C to 50° C)
Humidity Range10 to 95% RH
Air Velocity Range with 4098-9714, Photoelectric Sensor0-2000 ft/min (0-610 m/min)
Air Velocity Range with 4098-9717, Ionization Sensor0-200 ft/min (0-61 m/min)
Housing ColorFrost White / Black
Simplex TrueAlarm Analogue Photoelectric Smoke Detector 4098 9714 dimensions

Simplex TrueAlarm Smoke Detector Black Data Sheet

Spec Sheet Icon Simplex TrueAlarm Fire Alarm Detectors 4098 9717 9714 9733 Datapage
