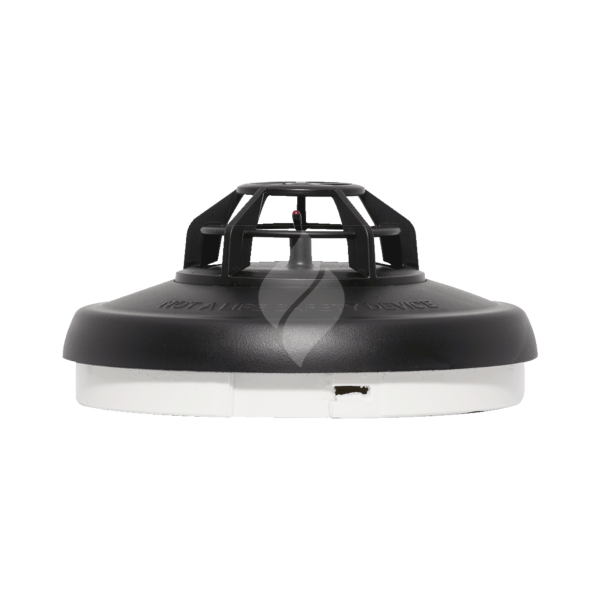

Simplex TrueAlarm Analogue Heat Fire Detector Black (4098-9733EBLK)

FSP Can Supply Simplex TrueAlarm Analogue Heat Fire Detector Black (4098-9733EBLK) provide fixed temperature, rate compensated sensing with or without rate-of-rise temperature sensing.

The heat sensor can quickly and accurately measure the local temperature, due to its small thermal mass, which the fire alarm control panel can then analyse and action when required. The sensors are also self-restoring after an alarm condition has been resolved, no additional action is required to restore the sensor to operational.

The fire alarm control panel can select the rate-of-rise for either 8.3° C (15° F) or 11.1° C (20° F) per minute.

Fixed temperature sensing is independent of rate-of-rise sensing and programmable to operate at 135° F (57.2° C) or 155° F (68° C). In a slow developing fire, the temperature may not increase rapidly enough to operate the rate-of-rise feature. However, an alarm will be initiated when the temperature reaches its rated fixed temperature setting.

TrueAlarm heat sensors can (dependant upon control panel) also be utilised as a device to monitor for temperatures in the range from 0° C to 68° C (32° F to 155° F). This feature could for example provide freeze warnings or HVAC over temp problems.

True Alarm heat sensors are self-restoring and provide rate compensated, fixed temperature sensing, selectable with or without rate-of-rise temperature sensing.

Due to its small thermal mass, the sensor accurately and quickly measures the local temperature for analysis at the fire alarm control panel.

Rate-of-rise temperature detection is selectable at the control panel for either 15° F (8.3° C) or 20° F (11.1° C) per minute.

Fixed temperature sensing is independent of rate-of-rise sensing and programmable to operate at 135° F (57.2° C) or 155° F (68° C).

In a slow developing fire, the temperature may not increase rapidly enough to operate the rate-of-rise feature. However, an alarm will be initiated when the temperature reaches its rated fixed temperature setting.

TrueAlarm heat sensors can be programmed as a utility device to monitor for temperature extremes in the range from 32° F to 155° F (0° C to 68° C). This feature can provide freeze warnings or alert to HVAC system problems. (Refer to specific panels for availability.)

Part Number 4098-9733EA

Simplex TrueAlarm Black Fire Detector Technical Specifications and Information

Sensor Type:	Heat
Compatible Bases	4098-9792, 4098-9789, and 4098-9791
Width:	124mm
Height:	60mm
Communications and Sensor Supervisory Power	MAPNET II or IDNet, auto-select, 24-40 VDC w/data, 400 μA typical, 1 address per base
Communications Connections	Screw terminals for in/out wiring, #18 to #14 AWG
Remote LED Alarm Indicator Current	1 mA typical, no impact to alarm current
Remote LED Alarm Indicator and Relay Connections	Color coded wire leads, #18 AWG
SSL Listing No.	afp-1202/1203 €“ Heat, afp-1225 €“ Photo, afp-1246 - Ion
Operating Temperature Range with 4098-9717 or 4098-9733 base(s)	32° F to 122° F (0° C to 50° C)
Operating Temperature Range with 4098-9714 base(s)	15° F to 122° F (-9° C to 50° C)
Humidity Range	10 to 95% RH
Air Velocity Range with 4098-9714, Photoelectric Sensor	0-2000 ft/min (0-610 m/min)
Air Velocity Range with 4098-9717, Ionization Sensor	0-200 ft/min (0-61 m/min)
Housing Color	Frost White / Black
