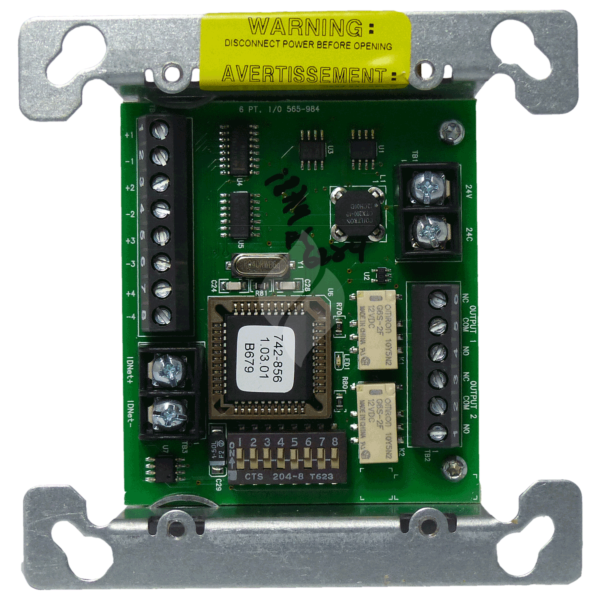

Simplex Six Point I/O Module with T-Sense Inputs and Relay Outputs Module 4090-9120
$375.47
The 4090-9120 allows 4100ES IDNet communication channel to monitor four T-sense input circuits and control two output relays from a single module requiring a single address.
SKU
4090-9120
The 4090-9120 allows 4100ES IDNet communication channel to monitor four T-sense input circuits and control two output relays from a single module requiring a single address.
Power is supplied by a separate 24Vdc connection to a listed fire alarm power supply.
The input circuits and output relay operation are controlled independently and may be disabled separately.
Point association is determined at the 4100ES host panel.
At the 4100ES, the device address is designated as a single hardware location.
Each of the four input circuits monitors for continuity to an end-of-line resistor and can differentiate between a short circuit contact closure and a current limited contact closure.
Two input supervision resistors are required per T-sense input.
Part Number 4090-9120
Specifications
| Comms Power: IDNet communications with data | 24 to 40Vdc w/data | ||||
| Operating Voltage: | 18 to 32Vdc | ||||
| Operating Current: | 30mA@24Vdc | ||||
| Relay Contact Ratings SPDT: |
| ||||
| Supervision Resistor: | 6k8 Ohm 0.5W | ||||
| Current Limited Operation: | 1k8/4k7 0.5W | ||||
| Input: | N/O, dry contacts | ||||
| LED Output: | 24Vdc (external PSU) | ||||
| Dimensions (HWD): | 105x105x35 mm | ||||
| Ambient Temperature: | 0 to +49°C | ||||
| Relative Humidity: | 10% to 90% (n/c) |
