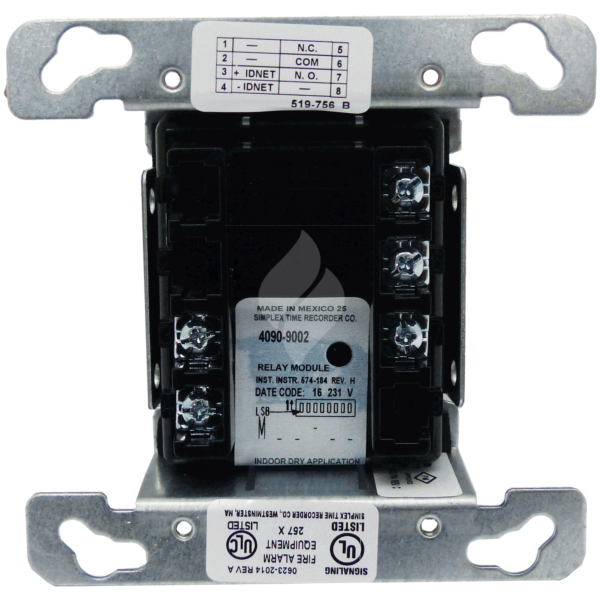

Simplex Relay IAM Individual Addressable Module (4090-9002)
$170.73
The 4090-9002 Relay IAM allows the CIE to control a remotely located Form “C†Relay contact using IDNet addressable communications for both data and module power.
The 4090-9002 is a Relay Individual Addressable Module (IAM) which allows the CIE to control a remotely located Form "C" Relay contact using IDNet addressable communications for both data and module power.
Typical applications are for switching local power for control functions such as magnetic door holders, or control of HVAC components, pressurisation fans, dampers, etc..
Relay contact status is also communicated to the CIE.
The address is set by DIP switch under the resealable label.
Specifications
Comms Power:
24 to 40Vdc w/data
Relay Contact Ratings SPDT:
0.5A @120VAC2
2A@24Vdc3
1A@24Vdc4
Current Limited Op:
1k8/4k7 0.5W
Dimensions:
(HWD) 105x105x35mm
Ambient Temperature:
0°C to +49°C
Relative Humidity:
10% to 93% (n/c)
About Simplex Fire Alarm
The SIMPLEX 4100ESi (eServices) Fire Alarm System utilising new technology to help deliver higher levels of serviceability, manageability and value over the life-cycle of your investment.
Key Features:
Advanced, easy to read 21cm colour touch screen with interactive mesages AS4428.3:2010 compliant
Onboard help screens for easy servicing
Compact flash storage for software, site details, manuals, etc.
Universal Platform – Small to large systems
New processor with on-board IP Network Capability
Future-Proof Modular Design
Backward compatibility and upgrade path to new technologies to protect customer’s investment
Walk Test
Fast, networkable Smoke Management and Control
ActivFire Listed afp-3027
High Level Networking, Multiple Topologies and Connectivity Options
Third Party Open Protocol Interfaces such as BACnet, Modbus, VESDANet, and OPC Server
Graphic Command Centres with client/server and dual redundant configurations.
SafeLINC Fire Panel Internet Interface
Simplex History
Simplex was founded in 1894 to provide fire and security products.
In 2001, SIMPLEX became a member of Tyco International Services GmbH (TYCO).
In 2016, Tyco became a member of Johnson Controls (JCI).
