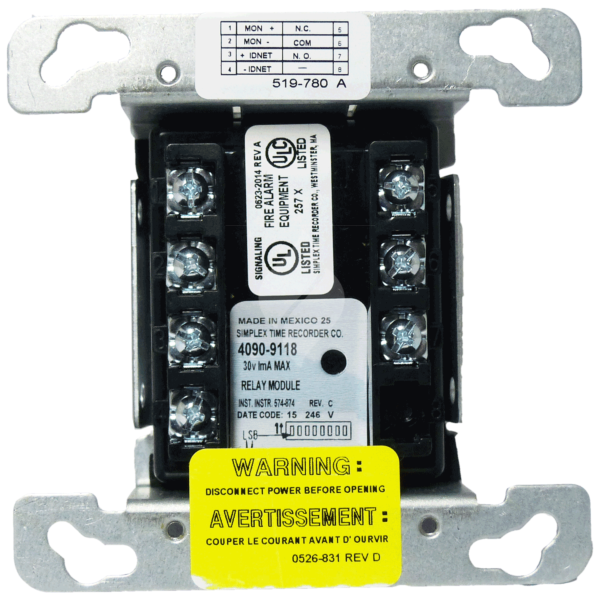

Simplex Relay IAM (Individual Addressable Module) with T-Sense Input 4090-9118

$161.68
The 4090-9118 Relay IAM with T-Sense allows a 4100ES IDNet communication channel to monitor two input contact closures with one point and control an output relay with the other point, yet occupy a single loop address.
SKU
4090-9118

The 4090-9118 Relay IAM with T-Sense allows a 4100ES IDNet communication channel to monitor two input contact closures with one point and control an output relay with the other point, yet occupy a single loop address. Power is supplied from the IDNet communications channel, eliminating the need for separate power wiring.

The input circuit and relay operation are controlled independently and may be disabled separately.

Applications include water flow and tamper switch monitoring and control and damper position monitoring and control

Part Number 4090-9118

Specifications

Comms Power:
IDNet communications with data
24 to 40Vdc w/data
Relay Contact Ratings SPDT:0.5A @120VAC (Resistive Load)
0.25A@120VAC (Inductive Load) 2A@30Vdc (Resistive Load) 1A@30Vdc (Inductive Load)
Input:N/O, dry contacts
Current Limited Operation:1k8/4k7 0.5W
Dimensions (HWD):105x105x35mm
Ambient Temperature:0 to +49°C
Relative Humidity:10% to 90% (n/c)
