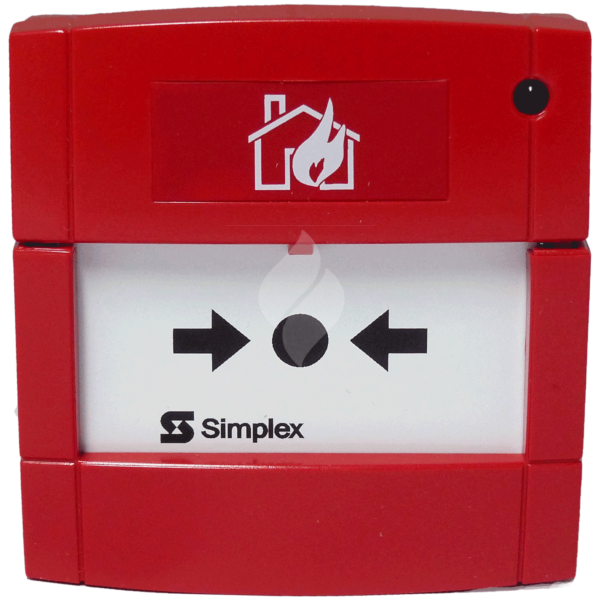

Simplex Addressable Manual Call Point 4099-9701

The 4099-9701 addressable Manual Call Point (MCP) provides a means to manually initiate a fire alarm condition to the 4100ES CIE via the IDNet channel.

SKU

4099-9701

Details

The 4099-9701 addressable Fire Alarm Manual Call Point (MCP) provides a means to manually initiate a fire alarm condition to the 4100ES CIE fire alarm panel via the IDNet communications channel. The IDNet channel provides the communication link and power between the call point and 4100ES using a single wire pair.

Activation of the MCP requires the frangible element (breakglass) to be broken, which causes contacts on a microswitch to close, initiating an alarm condition. Call Point reset requires the fitting of a replacement break-glass frangible element.

The MCP features an integral red LED status indicator.

The Simplex 4099-9702 MCP is connected to Simplex CIE. via MAPNET II and does not have a status indicator.

Part Number 4099-9701

If required, the SR3T-P Manual Callpoint backbox is ordered separately.

Features

Power and data supplied through IDNet addressable communications using a single wire pair
Enhanced aesthetics
Designed for fast and easy installation
Designed for EMI compatibility
Surface or flush mounting options
Test key allows the callpoint to be tested without breaking the glass
Requires a special key to open the callpoint

Specifications

Power and communications IDNet:	1 address per callpoint
Address means DIP switch:	8 position
Device type:	KACPUL
Wire connections:	Spade terminals
Storage and operating temperature range:	14Â°F to 131Â°F (-10Â°C to 55Â°C)
Humidity range:	Up to 95% RH non-condensing
Ingress protection:	IP24D
Color:	Red, RAL3001
Material:	PC/ABS
Dimensions (H x W x D):	93 mm x 89 mm x 28 mm 3 5/8 in. x 3 1/2 in. x 1 1/16 in.)

Simplex Addressable Fire Alarm Manual Call Point (MCP) 4099-9701 & 4099-9702 Data Sheet

Simplex Addressable Manual Fire Alarm Call point MCP 4099-9701 4099-9702 4099-9703 4099-9704 CN4099-97032
