Simplex/VESDA High Level Interface (HLI) Panel Mount I/F (4100-0154K)
$1,918.23
VESDA High Level Interface (4100-0154K)
SKU
4100-0154K
Simplex/VESDA High Level Interface (HLI) Panel Mount I/F (4100-0154K)
SIMPLEX/VESDA High Level Interface (HLI) allows SIMPLEX addressable fire detection panels to gather and process status information from VESDA LaserPLUS and LaserSCANNER high sensitivity air aspiration smoke detection systems.
Hardware requirements include an Intelligent Interface Module installed in the fire alarm control panel and an HLI Module installed in the VESDA smoke detection equipment.
The combination of VESDA smoke detection and the extensive features of the Simplex addressable panel allows mission critical and high value facilities to be equipped with a low level smoke detection system that can provide very early warning of the presence of incipient fire conditions.

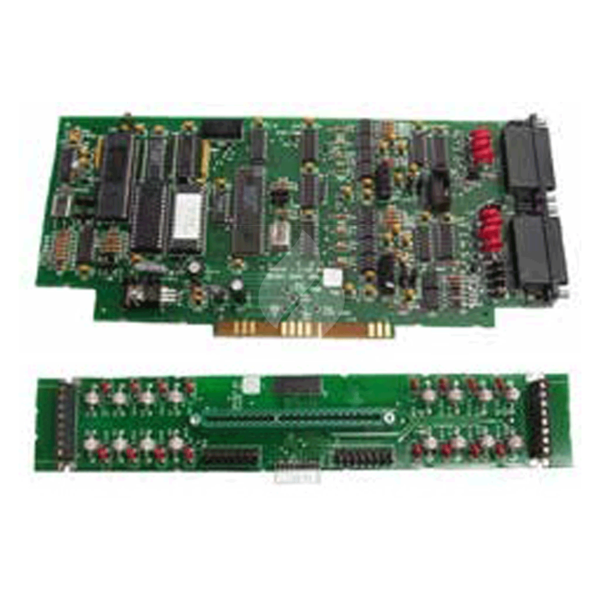

4100-0154K Motherboard (lower - fitted to the 4100ES FIP) and Interface Module (upper - fitted into the Motherboard)
Specifications
| Operating Voltage: | 18 to 32Vdc* |
| Current: | 132mA |
| Communications: | RS-232, 9600 baud, 6m max |
| Space (4100/4120) | Plugable module requires 51mm int. rack width |
| Space (4020) | Flat module 133x267(WH) |
| Relative Humidity: | 10% to 95% (non cond.) |
| Ambient Temp: | 0°C to +49°C |
| Weight: | 81g |
