Inergen 200 bar discharge hose New and Replacement Ansul IG-541 CV98 (427635)

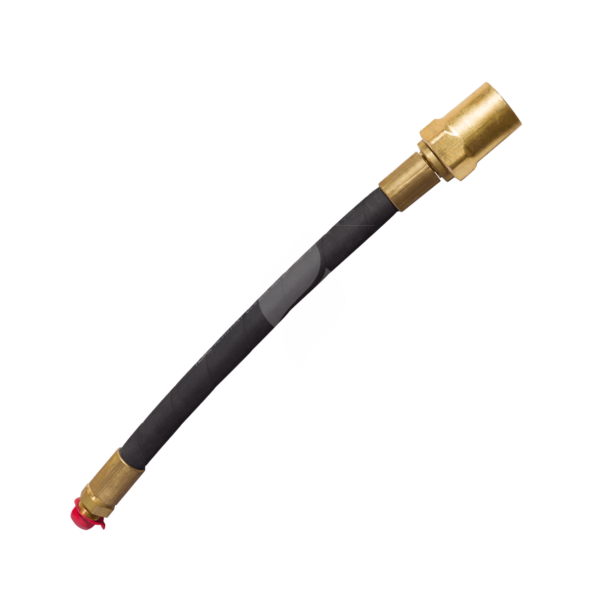

FSP Can Supply Ansul Inergen IG-541 200 bar discharge hose New and Replacement CV98 (427635) . The flexible discharge bend is a 5/8 in. (15.9 mm) I.D. heavy duty hose for connections between the discharge valve and manifold or fixed piping.

The Discharge Hose has one female end for connection to the valve and one male 1/2 in. NPT thread and can withstand a pressure of 621 bar (9000 psi).

The hose has a built-in check valve to prevent loss of agent if the system discharges with a cylinder removed.

Ansul Inergen New and Replacement 200 bar discharge hose Technical Specifications and Information

Material:	SAE 100 R2 Type AT
Length:	479mm
Swage Size / Type:	Valve end:	Female thread to suite CV-90 or CV-98 with 200bar adapter ring
	Manifold or fixed piping end:	Male 1/2in. NPT thread

Note:

This Hose is specially constructed for the Australian Market.

The CV-98 for 200bar systems comes with an Adapter ring. This is to reduce the likelyhood of 200 bar cylinders being used on the older 150bar systems, which is potentially hazardous.
