Inergen & CO2 150 bar discharge hose New and Replacement Ansul IG-541 CV98 / CV90 / AP-8 (427082)
Ansul Inergen & CO2 IG-541 150 bar discharge hose New and Replacement CV98 CV90 AP-8 (427082)
SKU
427082

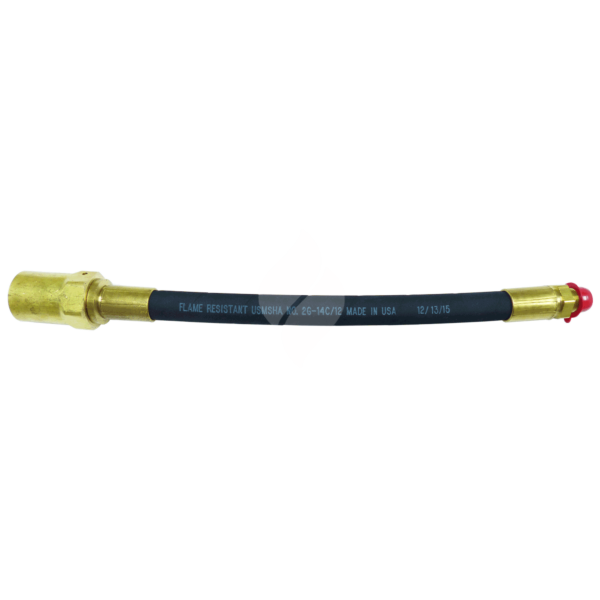

FSP Can Supply Ansul Inergen & CO2 IG-541 150 bar discharge hose New and Replacement CV98 CV90 AP-8 (427082) . The flexible discharge bend is a 5/8 in. (15.9 mm) I.D. heavy duty hose for connections between the discharge valve and manifold or fixed piping.
The Discharge Hose has one female 1.3-12UN-3B threaded end for connection to the valve and one male 1/2 in. NPT thread and can withstand a pressure of 621 bar (9000 psi).
The hose has a built-in check valve to prevent loss of agent if the system discharges with a cylinder removed.
Part number 842430 is included as the Washer (not sold seperately)
Ansul Inergen & CO2 New and Replacement 150 bar discharge hose Technical Specifications and Information
| Material: | SAE 100 R2 Type AT | |
| Length: | 479mm | |
| Swage Size / Type: | Valve end: | Female to suite CV-90 or CV-98 or AP-8 |
| Manifold end: | Male 1/2 in. NPT | |
Ansul Inergen & CO2 150 bar discharge hose New and Replacement Data Sheet
Ansul Flexible Discharge Bend Data Sheet for CV98 / CV90 / AP-8 Valves 150bar
