Hygood Actuation Hose New and Replacement Inergen iFLOW IG-541 (30522001)

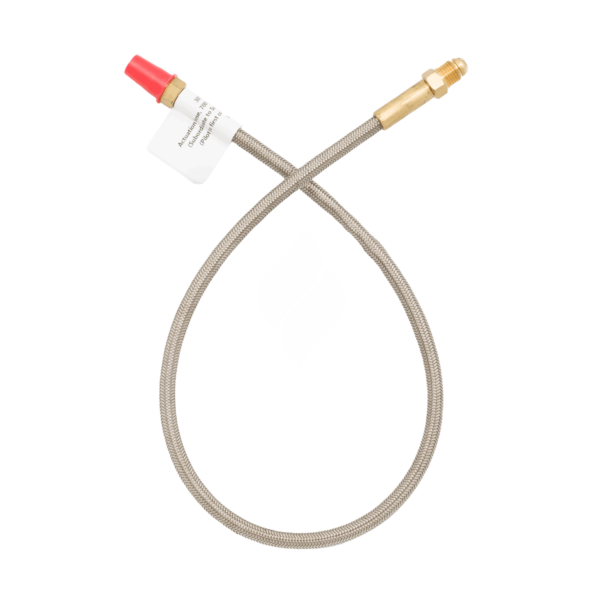

FSP Can Supply Hygood Inergen iFLOW IG-541 New and Replacement Actuation Hose (30522001) which is a 1/4 Inch diameter Teflon hose, fitted with brass 1/4 in. BSPP male swivel union ends. The iFLOW Actuation hoses come in two different Lengths, this being the longer of the two (700mm). These hoses are used to connect the pneumatic actuators together and to transmit the pressure from the pilot cylinder to operate the pneumatic actuator on the Inergen iFLOW container.

The 580mm variation of this hose is Part Number 30506014.

The Actuator hose has male swivel ends on both ends and require no sealing tape when fitted to the pneumatic cones.

Hygood Inergen iFLOW Actuation Hose New and Replacement Technical Specifications and Information

Type:	Primary supply (PTFE)
Length (A):	700mm
Hose construction:	Stainless steel wire braid PTFE liner
Connection:	1/4 in. BSPP Male swivel union (brass)
Internal hose inner diameter:	5.8 mm to 6.2 mm
Connection inner diameter:	4 mm
Maximum working pressure:	260 bar
Minimum burst pressure:	700 bar
Bend angle:	360°
Minimum bend radius:	30 mm
Weight:	0.14 kg (Part number 30506014) 0.14 kg (Part number 30522001)
Type of connector:	Type 3
Approvals and listings:	VdS
Certification:	EN 12094-8
CE certification number:	0786-CPR-30099
Year of CE marking:	2009
CE marking requirements:	Manufacturer, part number, batch number, working pressure, hose type, CE0786
Method of marking:	Engraving
