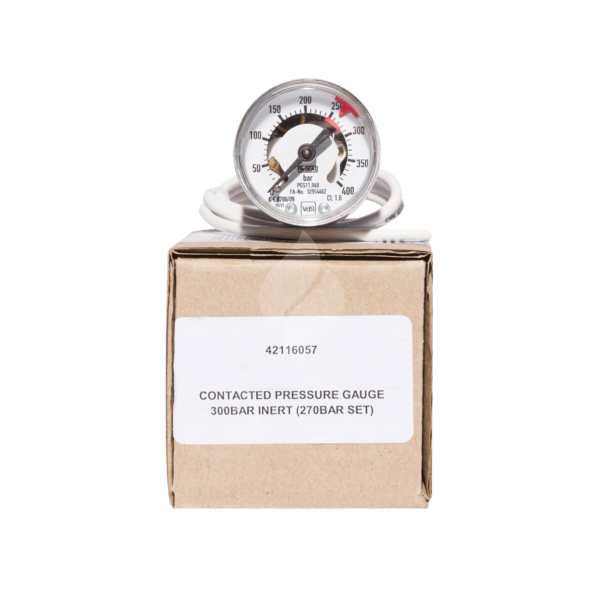

Hygood Contacted Pressure Gauge New and Replacement Inergen iFLOW IG-541 (42116057)

Hygood Inergen iFLOW IG-541 New and Replacement Contacted Pressure Gauge (42116057 42116066)

SKU
42116057
Hygood Contacted Pressure Gauge New and Replacement Inergen iFLOW IG-541 (42116057) is available to buy in increments of 1

FSP Can Supply Hygood Inergen iFLOW IG-541 New and Replacement Contacted Pressure Gauge (42116057 42116066) assembly, which contains the 42116066 Gauge, fixing nut and o-ring. The gauge can display zero to four hundred bar pressure and has an internal contact switch set to signal if cylinder pressure drops to 270 bar or below. FSP can provide these pre-installed in the iFLOW valve for new installs or as seperate items. The set point of the Contacted pressure gauge is 270 bar, giving indication of a 10% loss of system pressure as per VdS system rules. Pressures within the cylinder vary dependant on ambient temperatures, so this should be taken into account.

Hygood Inergen iFLOW Contacted Pressure Gauge New and Replacement Technical Specifications and Information

Type: Bourbon tube pressure gauge
Contact Connections: NC (Normally Closed) under Normal Operating Pressure
Contacts Open at 270 bar or below
Contact Voltage: 4.5 VDC to 24 VDC
Contact Current: 5 mA to 100 mA (2.4W Max)
Entry: Back axial
Normal size: Dia 41mm x 56mm
Pressure Range: 0 bar to 400 bar
Connection: M10 x 1 DNI13
Class accuracy: 1.6
Working temperature range: -20 C to +50 C (EN 12094-10)
+5 C to +25 C (VdS system approval)
Weight: 0.66 kg
Individual Part Numbers:
Gauge: 30245006
Fixing Nut: 30210808
O-ring: 22000509
Protector: 35116444
Hygood iFLOW Inergen 300 bar contacted pressure gauge 42116057 42116066 diagram

Hygood Inergen iFLOW New and Replacement Contacted Pressure Gauge Data Sheet

Spec Sheet Icon Hygood iFLOW Inergen 300 bar contacted pressure gauge 42116056 42116066

Warnings

Contacted Pressure Gauges should not be exposed to excess mechanical shock of vibration (< 0.5 g & < 150Hz).

All pressure gauges should not be exposed to high pressure water streams (such as for cleaning).

If Cylinders are expected to be exposed to temperatures approaching the limits of the gauges (particularly low temps), consider housing within temperature controlled areas.
