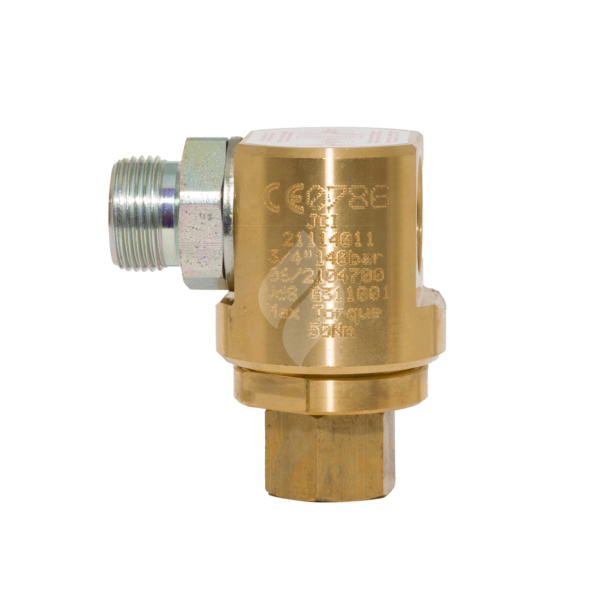

Inergen iFLOW Check Valve New and Replacement Hygood IG-541 (21114011)

FSP Can Supply Hygood Inergen iFLOW IG-541 Check Valve New and Replacement (21114011) . This valve has a 3/4 in. male coupling (PN30600205) and Dowty seal (PN95108010).

The Female "swivel nut" end of the check valve connects directly to the outlet of the iFLOW cylinder valve.

The 3/4 Inch male coupling supplied with the check valve connects from the check valve into the female end of either PN91116026 or PN91116030.

A blind cap(PN30390160) can be ordered sperately to blank off any unused ports.

Hygood Inergen iFLOW New and Replacement Check Valve Technical Specifications and Information

• Body: Brass
• Cap: Brass
• Piston: Brass
• Nut: Brass
• Spring: Stainless Steel
• 3/4 in. male coupling: Zinc plated steel
• Inlet Connection thread: W.21.7 DIN 477
• Outlet Connection thread: G 3/4 in. ISO228
• Typical Working Pressure: 60bar at 20 °C
• Max Working Pressure: 140bar
• Test pressure: 140bar
• Weight: 0.7 kg
• Max Torque: 50Nm
• Overall size: 81mm x Dia 52mm
