Inergen iFLOW Manifold Discharge Pressure Switch New and Replacement Hygood IG-541 (30330010)

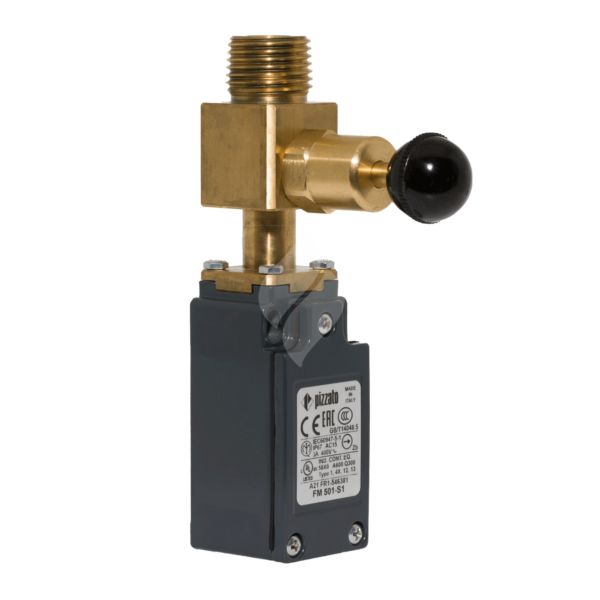

FSP Can Supply Hygood Inergen iFLOW IG-541 Manifold Discharge Pressure Switch New and Replacement (30330010) . The latching iFLOW pressure discharge switch mounts to the distribution pipework or manifold and can be used to provide an electrical indication of a Gas Suppression System release of Inergen Agent. It can also be used to perform ventilation shutdowns or other interlocking functions.

Hygood Inergen iFLOW New and Replacement Manifold Discharge Pressure Switch Technical Specifications and Information

• Locking system: Brass
• Electrical box system: Duraluminium
• Connection: 1/2 in. BSPT
• Set point: 10 bar rising at 20 °C
  (with manual reset)
• Working temperature range: -25 °C to 80 °C
  -25 °C to 50 °C (EN 12094-10)
• Maximum working pressure: 370 bar
• Weight: 0.41 kg
• Maximum current: 6 A
• Maximum voltage: 250 VDC
  500 VAC
• Ingress protection class: IP65
• Conformity: UL-580
• Approvals and listings: LPCB, VdS, A2P
• Overall size: 126 mm × 30.3 mm × 32.4 mm

Note:

The Switch is latching and requires a manual reset following operation of the Gas Suppression system.

To reset, pull and release the knob on the side of the unit.
