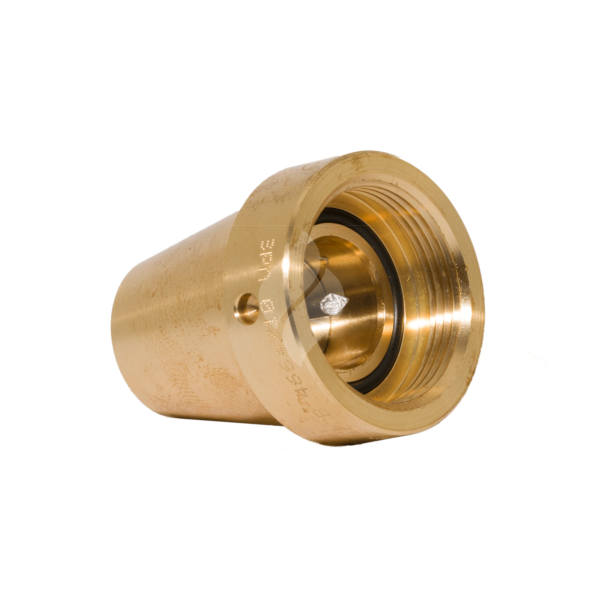

Inergen iFLOW Pnematic Cone Actuator New and Replacement Hygood IG-541 (30027201)

FSP Can Supply Hygood Inergen iFLOW IG-541 Pnematic Cone Actuator New and Replacement (30027201) . The Actuator is installed directly onto the port on the iFLOW discharge valve. The Actuator operates through pressure received from either a master cylinder or pilot container. When Actuated, manual resetting is required before refitting to the valve.

Hygood Inergen iFLOW New and Replacement Pnematic Cone Actuator Technical Specifications and Information

• Body: Brass
• Actuator pin: Stainless steel
• Pipe connection: M30 × 1.5 Female
• Inlet connections: 1/4 in. BSPP
• Maximum working pressure: 370 bar
• Minimum trigger pressure: 60 bar
• Nominal trigger pressure: 100 bar (with pilot container)
  300 bar (without pilot container)
• Maximum trigger pressure: 370 bar
• Weight: 0.17 kg (pneumatic cone)
  0.20 kg (tee for pneumatic cone)
• Working temperature range: −20 °C to 50 °C
• Testing of actuator: Possible
• Overall size: 64 mm × 50 mm

Note:

Use the 35mm to 60 mm C Spanner (PN35017401).
