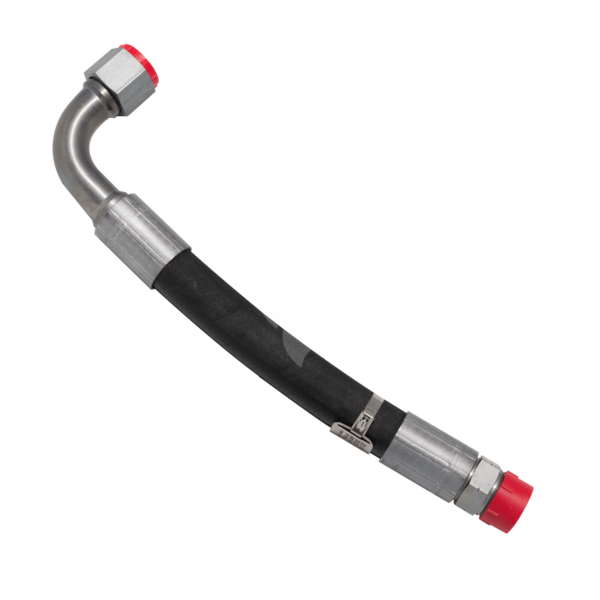

Ansul 1 Inch (25mm) Flexible Discharge Hose Sapphire & FM-200 IG-541 & HFC-227ea (570539)
Ansul Sapphire & FM-200 IG-541 & HFC-227ea 1 Inch (25mm) Flexible Discharge Hose (570539 306.207.002)
SKU
570539
Ansul 1 Inch (25mm) Flexible Discharge Hose Sapphire & FM-200 IG-541 & HFC-227ea (570539) is available to buy in increments of 1
FSP Can Supply Ansul Sapphire & FM-200 IG-541 & HFC-227ea 1 Inch (25mm) Flexible Discharge Hose (570539 306.207.002) FM-200 & Sapphire container installations may be connected to the system by means of a flexible discharge hose or a Swivel Connector. This enables containers to be disconnected for maintenance or recharge without dismantling other container mountings, manifold connections and pipework, etc. The flexible discharge hose is provided with a swivel fitting at the inlet.
Ansul Sapphire & FM-200 Flexible Discharge Hose 1 Inch (25mm) Technical Specifications and Information
| Hose Construction: | Twin steel wire braided oil resistant seamless synthetic rubber core to DIN EN 85 3 1SN |
| Connection: | Zinc Passivated Mild Steel 25 mm (1” NPT) Straight Fixed Male 25 mm (1” BSPP) 90° Female Swivel Union |
| Max. Bend Angle: | 15° @ 0 °C (32 °F) |
| Max. Working Pressure: | 88 bar (1276 psi) |
| Overall Size: | 405mm (L) x 92mm (W)(15.95” (L) x 3.62” (W)) |
| Weight: | 1.25 kg (2.76 lbs) |
| Equivalent Length: | 3.14 m (10.3 ft) |
