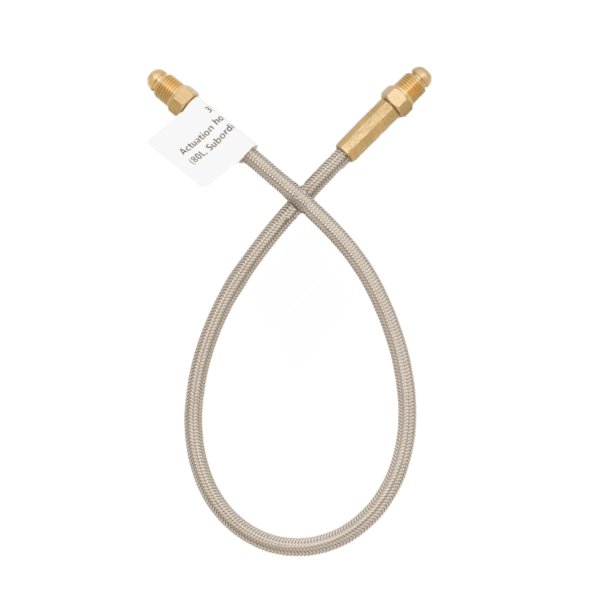

Hygood 1/4 inch Actuation hose iFLOW Inergen New and Replacement (30506014)

FSP Can Supply Hygood iFLOW Inergen 1/4 inch Actuation hose New and Replacement (30506014) The hoses are used to connect between pneumatic actuators on the pilot container and the first or master iFLOW container. It also interconnects between the remainder of the pneumatic actuators fitted to the other containers in the container bank.

They also connect the manual-pneumatic actuator. The hose contains brass male swivel ends. Requires no sealing tape when fitting to the pneumatic actuators. Avoid twisting the hose during installation. Hold the hose fitting with pliers while tightening the swivel end of the hose into the pneumatic actuator.

A 30 mm maximum bending radius applies.

Hygood iFLOW Actuation hose 1/4 inch Technical Specifications and Information

Type:	Primary supply (PTFE)
Length (A):	580mm
Hose construction:	Stainless steel wire braid PTFE liner
Connection:	1/4 in. BSPP Male swivel union (brass)
Internal hose inner diameter:	5.8 mm to 6.2 mm
Connection inner diameter:	4 mm
Maximum working pressure:	260 bar
Minimum burst pressure:	700 bar
Bend angle:	360°
Minimum bend radius:	30 mm
Weight:	0.12 kg (Part number 30506014) 0.14 kg (Part number 30522001)
Type of connector:	Type 3
Approvals and listings:	VdS
Certification:	EN 12094-8
CE certification number:	0786-CPR-30099
Year of CE marking:	2009
CE marking requirements:	Manufacturer, part number, batch number, working pressure, hose type, CE0786
Method of marking:	Engraving
