Vigilant CIM800 Contact Input Module (555.800.002.S)

$138.11

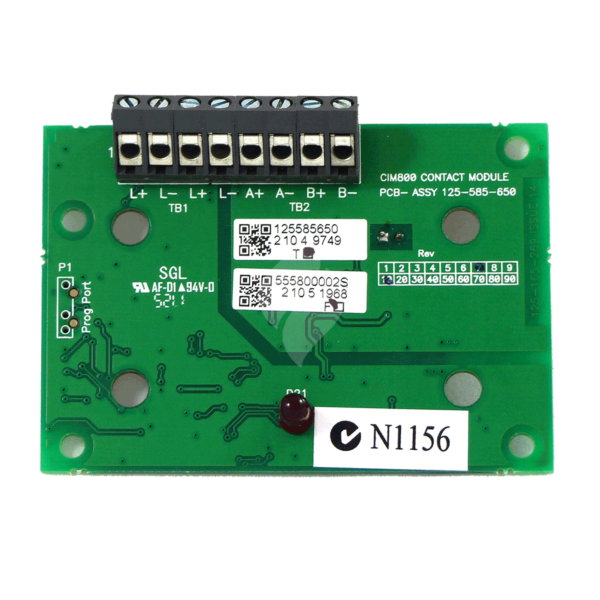

CIM800 Contact Input Module
SKU
CIM800
The CIM800 Addressable Contact Input Module Monitors and supervises 2 circuits of voltage-free contacts such as outputs from extinguishing systems, ventilation controls, fire door controls, sprinkler flow switches, non-indicating hard contact detectors, etc. The LED illiminates when any input goes into alarm and can be programmed to blink when polled by the c.i.e. The CIM800 can be configured to monitor: Two circuits of multiple N/O contacts, with short circuit alarm. Two circuits of multiple M/C contacts, open circuits alarm, Two circuits with a single N/O contact closing for alarm, with short circuit fault. ( requires a resistor in series with the alarm contact and special c.i.e programming ). Part Number 555.800.002.S



Specification

Click here for CIM800 Contact Input Module Datapage
