OBSELETE Vigilant 2 Zone Gas Door (ME0349)
2 Zone Gas Door
SKU
ME0439

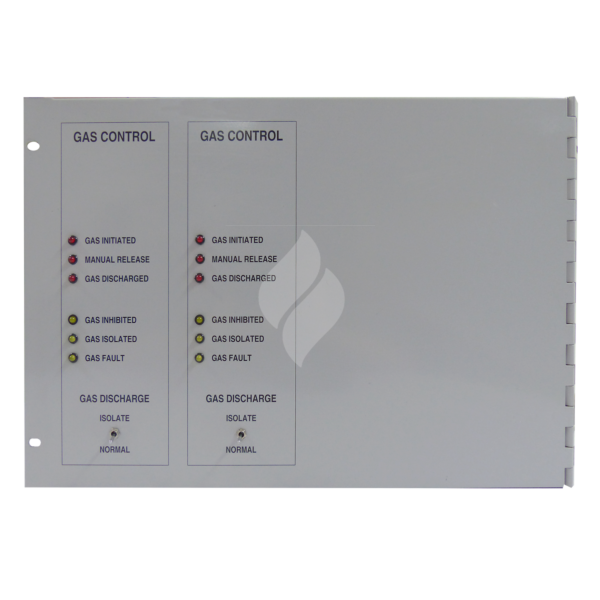

Gas control module provide indication and control of 1-4 zones of gas extinguishing on F3200 and Mx4428 C.I.E. They are pre-wired modules (requiring appropriate input/output modules). The modules have a 12 way screw terminal block for easy termination of the field wiring for the local gas control stations, gas discharge pressure switch,warning signs and gas release output. the connection for the alert/evacuate warning signs is a 2 wire polarity switched output that supports up to 10 AVI Mk2 units. All out puts can be supervised (this requires appropriate programming and configuring in the panel). The Gas control modules provides LED's for each gas zone to indicate: Gas Initiated (Red) Manual Release (Red) Gas Discharged (Blue) Gas Isolated (Yellow) System Inoperative (Yellow) Gas Inhibited (Yellow)
Specification
Click here for ME0439 2 Zone Gas Door
