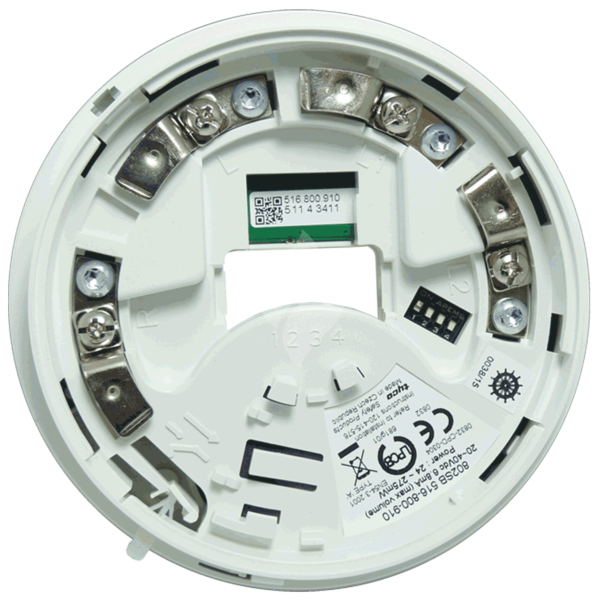

802SB Low Power Sounder Base (516.800.910)

The 802SB addressable sounder base provide a sounder function on MX addressable systems. Designed for indoor use, they require an associated detector on order to operate, as each base is controlled by its detector. The detector must be locked onto the sounder base using the detector locking device. Removal of the detector or loss of power to the loop will cause the sounder to cease sounding. It must be fixed to a flat ceiling or a suitable electrical back box with 50mm fixing centers. The 802SB is identified by a white park clip and is loop powered. Up to fifty 802SBs on the loop may be operated at full volume at any one time. Part Number 516.800.910



Specification

802SB Low Power Sounder Base Datapage.pdf
