Simplex 4090-9101 Zone Adaptor Module (ZAM) - Monitor
$189.10

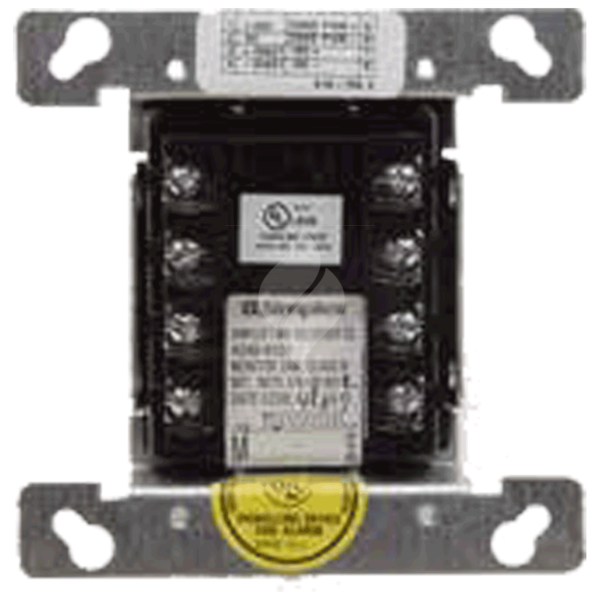

4090-9101 Zone Adaptor Module (ZAM) - Monitor
SKU
4090-9101
The 4090-9101 Zone Adaptor Module Monitor ZAM allows a 2-wire circuit of conventional smoke or heat detectors to be interfaced on to the IDNet loop. Up to 20 conventional heat and smoke detectors can be monitored by a 4090-9101 Monitor ZAM. The address is set by DIP switch under the resealable label.
Note the 4090-9101 requires a separate 24Vdc power supply to power the conventional circuit.
Part Number 4090-9101
Specifications
| Comms Power: IDNet Communications with data | 24 to 40Vdc w/data |
| Operating Voltage: | 18.9 to 32Vdc |
| Quiescent ZAM Current @ 24Vdc | 16mA max. |
| Alarm ZAM Current @ 24Vdc | 72mA max. |
| Supervision Resistor: | 3k3 Ohm 1W |
| Dimensions (HWD): | 105x105x35mm |
| Ambient Temperature: | 0 to +49°C |
| Relative Humidity: | 10% to 93% (n/c) |
