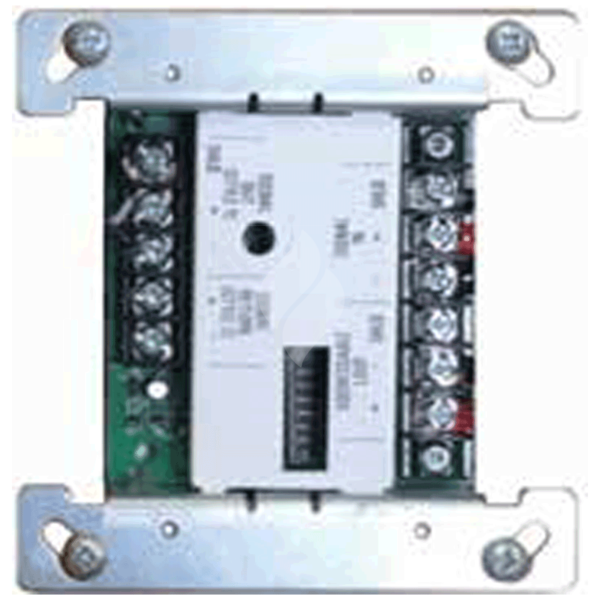

Simplex 4090-9007 Signal IAM
$154.74
4090-9007 Signal IAM
SKU
4090-9007
This IDNet addressable device provides a supervised, addressable interface to conventional warning devices such as sounders or strobes. The Signal IAM requires a supervised power supply or compatible signal input for powering the externally connected loads.
- Provides a single switched branch with supervision
- Contact is fused at 0.5A for 30V DC or 70V AC. Uses standard 20 x 5mm cartridge fuse
- EOLR is 10k.
- DC loads must be diode isolated
- Supervision cannot be disabled
- The supply side and the internal fuse are not supervised by the Signal IAM
- Signal IAM is not suitable for switching 100V audio signals
Specifications
| Operating Voltage: | 24Vdc, Loop Supplied |
| Operating Current: | 170 mA |
| Operating Temp: | 0 to 49°C |
| Relative Humidity: | 10% to 93% (non-cond) |
| Dimensions: | 102 x 105 x 32 mm |
Part Number 4090-9007
