Simplex BACpac BACnet Portal with Ethernet interface(4100-6069)
$2,706.25
Simplex BACpac BACnet Portal with Ethernet interface(4100-6069)
SKU
4100-6069
The Simplex 4100-6069 BACpac Ethernet module provides a supplementary communications interface that converts computer terminal information from a compatible Simplex CIE (FACU) into the building automation protocol of BACnet or any industrial equipment using Modbus protocol.
With this module, status information from the CIE (FACU) can be provided to other components of the building automation network with the detail and information format required. Providing this information allows other systems to properly respond to fire alarm system activity in addition to the primary fire alarm response that is under the control of the CIE (FACU).
Features
Panel mounted modules provide fire alarm system status using the ASHRAE BACnet building automation communication protocol or Modbus communication protocol.
Communication protocol reference:
- BACnet Internet Protocol (IP) or BACnet MS/TP (serial) Reference ANSI/ASHRAE Standard 135
- Modbus TCP or Modbus RTU (serial)
Connections:
- To fire alarm system through RS-232 port B, configured for Computer Port Protocol. See Table 1 for model number reference for each panel.
- Output port provides Ethernet local area network (LAN) or RS-485 connection
BACpac Ethernet Module is pre-programmed:
- Module is pre-programmed with digital pseudo points linked to BACnet objects
- You can recognize up to 15000 status changes (monitor point status) from the fire alarm control unit (FACU)
Compatible Simplex fire alarm control units (FACU):
- 4100ES and 4100U Series FACUs and Network Display Units (NDU)
- 4010ES Series FACUs
- Installed legacy Models 4100/4100+ and 4120 Series FACUs and NDU; may require software revision update
Compatible with Metasys®
- The module is compatible with Metasys®, Johnson Controls building automation system for 4100ES and 4010ES panels.
Specifications:
| Voltage: | 24 VDC from FACU; operation range 9 VDC to 30 VDC |
| Current: | 123 mA maximum from 24 VDC FACU supply |
| Connections: | Wires to pluggable terminal block, harness included |
| Data Input type: | RS-232 Computer Port Protocol from FACU |
| Data Input Connections: | Pluggable terminal block (same terminal block as used for input power) connects to RS-232 module in fire alarm control panel, harness included |
| Data Output type: | Ethernet compatible communications formatted as BACnet IP (internet protocol) or Modbus TCP. Serial communications formatted as BACnet MS/TP or Modbus RTU. |
| Data output Connections: | Ethernet RJ-45 jack located on LAN suppressor module (part of module assembly); LAN Ethernet output connector to be supplied separately. RS-485 connector (harness not included) used for serial communication. |
| BACnet default settings: | Device Instance = 32400; IP Address = 192.168.1.24; Subnet Mask = 255.255.255.0 |
| Status LED indications: | Power, TX, RX, RTX, CTS, DTR, DSR, DCE, and RI; located on the processor assembly |
| 4100-6069, 4100-6110, and 4100-6111 module size: | 2 in. Slot type module, components are mounted on a metal bracket; bracket dimensions: 10 7/16 in. H x 2 in. W x 4 in. D (102 mm x 51 mm x 265 mm) |
| 4010-9915 module size: | Single block module (4 x 5); uses the modules shown in Figure 3, but packaged differently |

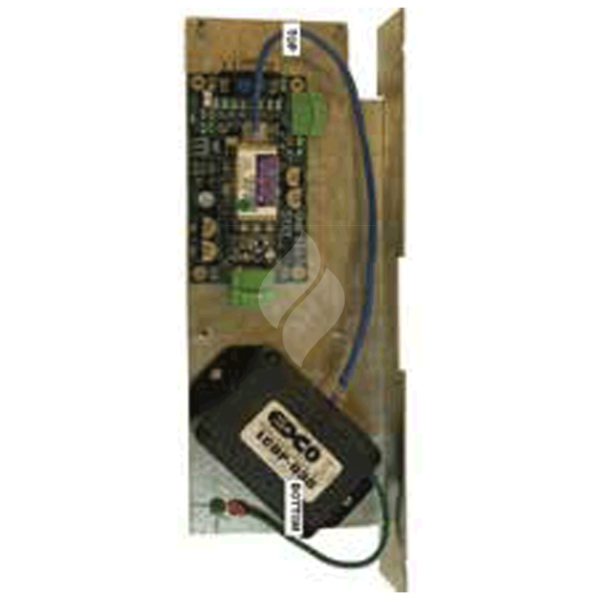

| Module description: | RS-232 communications and power are connected to the on-board pc board assembly for processing; a pluggable harness (supplied) connects to a grounded LAN suppressor mounted on the chassis; standard Ethernet LAN cable is supplied separately |
| Operating temperature range: | 32°F to 120°F (0°C to 49°C) |
| Humidity range: | Up to 93% RH, non-condensing @ 90°F (32°C) maximum |
Note: Connect to Port B of RS-232 Module
Possible Markings on Board: None
Spares Group: Internal slave modules
