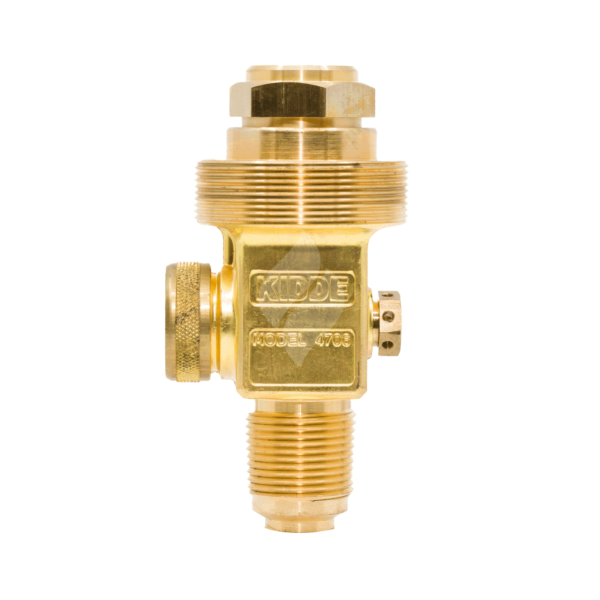

Kidde American Flood (Type I) Valve (WK-840253-000)

FSP Can Supply Kidde American Flood (Type I) Valve (WK-840253-000).

The Kidde High-Pressure Carbon Dioxide (HPCO2) Fire Suppression Systems uses a forged brass discharge valve.

The "American Flood" style valve is supplied with and used on 75lb & 100lb capacity cylinder assemblies.

A safety relief device (Burst Disk) provides protection of the cylinder from over pressurization and is provided as part of the discharge valve assembly.

The side port can be used to attach a compatible control head or functions as a fill connection.

A pressure gauge is not provided as the CO2 is stored under its own vapour pressure.

a properly attached discharge head is required to be installed on the discharge valve before it can dispense the cylinder contents.

A discharge flex hose or a swivel adapter then connects the discharge head to the system manifold.

A discharge head and flex hose need to be ordered for each cylinder assembly.

Alternate Part Numbers

WK-840253-002 - 5/8 Inch I-Valve - TPED Approved

Kidde American Flood Type I Valve Technical Specifications and Information

Valve Body	Brass
Valve Seat	Brass
Sleeve	Brass
Sleeve Retainer	Brass
Main Check	Brass with Rubber seat
Pilot Check	Stainless Steel with Rubber seat
Working Pressure Rating	158 Bar (2300 PSIG)
Hydrostatic Pressure Rating	413 Bar (6000 PSIG)
