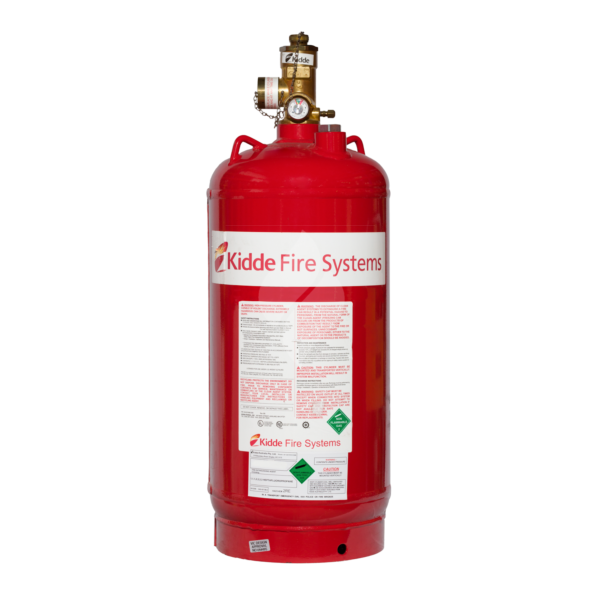

Kidde Blank 125Lb (56Kg, 50.6 Ltr) square shoulder Fire Suppression Cylinder, with either Novec-1230 or FM-200 agent (06-100125-000)
Kidde Blank 125Lb (56Kg, 50.6Ltr) square shoulder Cylinders, which can be filled with between 28.6Kg and 56.7Kg of Gas Suppression Agent. (06-100125-000 )
SKU
06-100125-000
FSP Can Supply new, Refill, Hydrostatic test and service Kidde Blank 125Lb (56Kg, 50.6Ltr) square shoulder Cylinders, which can be filled with between 28.6Kg and 56.7Kg of Gas Suppression Agent. (06-100125-000 ) The cylinders are equipped with a 1.5-inch pressure differential valve and pressure gauge. The safety burst disc is also located on the cylinder head.
Contact us if you need these Kidde 125 lb. FM-200® Cylinders with the optional liquid level indicator or optional low-pressure switch assembly.
Novec-1230 is required to be kept under pressure otherwise it vaporises. Dry Nitrogen is used to provide the constant pressure required to keep the agent in liquid form in the tank.
Kidde 125 lb. FM-200® (56Kg) Cylinder Specifications
- Height = 810mm
- Valve Size = 1.5inch
- Min Fill = 28.6Kg
- Max Fill = 56.7Kg
- Gross Weight = 101.2Kg
Kidde Blank 125Lb (56Kg) Cylinder Data Sheet
kidde novec-1230 k-45-2010 Cylinder Valve Assem Vertical Mnt Only 10-7-14
