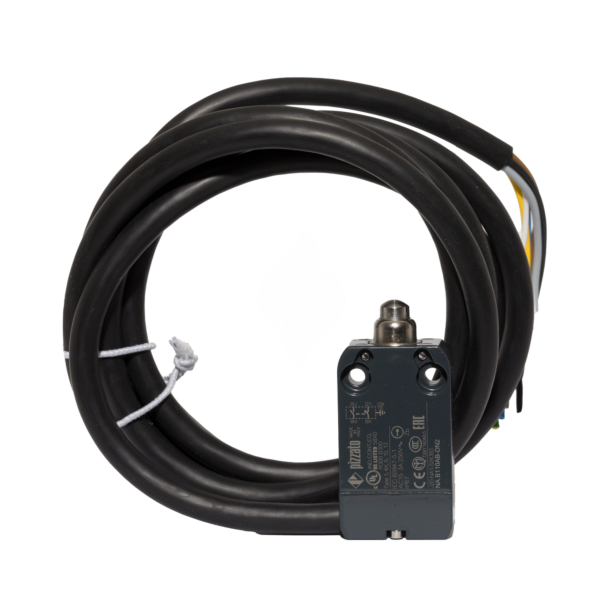

Inergen iFLOW Selector Valve Microswitch New and Replacement Hygood IG-541 (30116011)

FSP Can Supply Hygood Inergen iFLOW IG-541 Selector Valve Microswitch New and Replacement (30116011) . The switch, when fitted correctly to the Selector Valve, can be used to electronically signal that the valve has operated.

When the selector valve opens, the detector screw makes contact with the plunger on the microswitch.

The Microswitch is supplied with the detector screw and the required fittings.

Hygood Inergen iFLOW New and Replacement Selector Valve Microswitch Technical Specifications and Information

• Type: Modular pre-wired switch with plunger
• Housing: Metal housing, 20mm fixing points
• Contact block: 1 NO + 1 NC snap action
• Cable: PVC cable, 5 x 0.75mm
  2.0m Length
• Ingress Protection Class: IP67 (EN60529) & IP69K (ISO 26053)
• Switch type: Positive opening (IEC 60947-5-1)
• Thermal Current: 10A
• Rated Insulation Voltage (Ui): 250VAC
• Fuse: 10 A 500 V type gG
