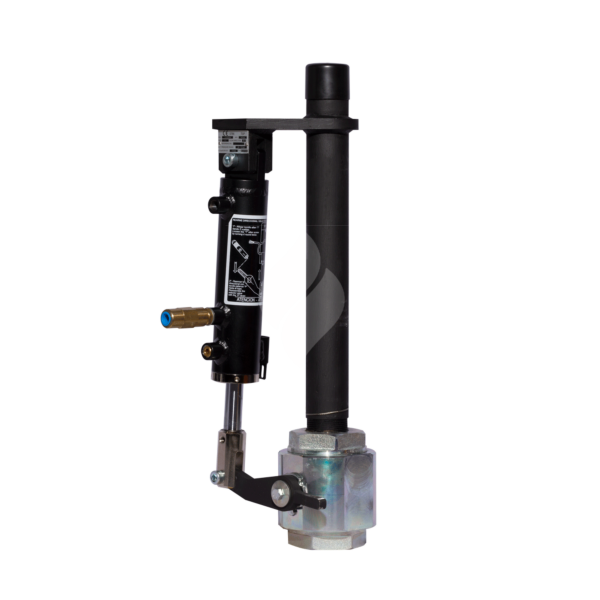

Inergen iFLOW Selector Valve 40mm New and Replacement Hygood IG-541 (445046)

FSP Can Supply Hygood Inergen iFLOW IG-541 Selector Valve 40mm New and Replacement (445046, 442798, 21100080V, 441441) . Selector Valves (aka Distrobution Valves) allow a single bank of cylinders to protect multiple areas. The vlaves are Pneumatically operated from the pilot container and can be installed remotely (outside the protected space) or locally (adjacent to the cylinder bank).

Hygood Inergen iFLOW New and Replacement Selector Valve 40mm Technical Specifications and Information

Valve bore size	40 mm (1 1/2 in.)
Valve construction	Steel
Valve connection (threaded)	Threaded NPT Female inlet NPT Male outlet
Pneumatic port connection	1/4 in. BSPP
Working temperature range	-20 °C to 50 °C
Mounting position	Horizontal or vertical
Nominal actuation pressure	100 bar
Maximum working pressure	140 bar
Minimum actuation pressure	60 bar
Maximum actuation pressure	115 bar
