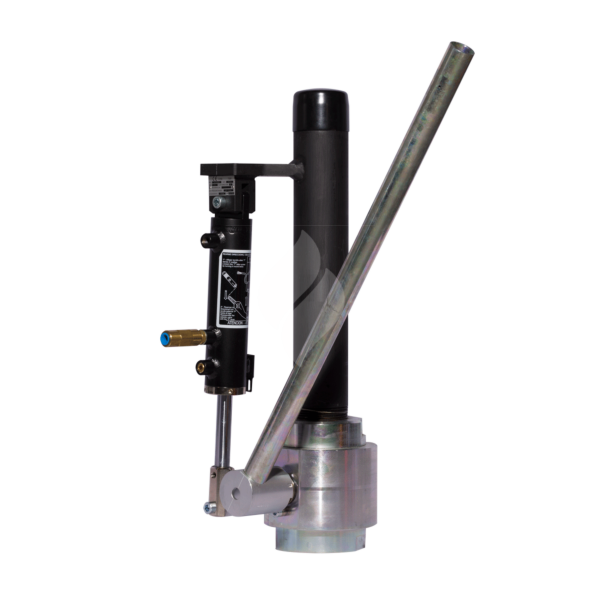

Inergen iFLOW Selector Valve 65mm New and Replacement Hygood IG-541 (62116006V)

FSP Can Supply Hygood Inergen iFLOW IG-541 Selector Valve 65mm New and Replacement (62116006V 441443, 445048, 442800) . Selector Valves (aka Distrobution Valves) allow a single bank of cylinders to protect multiple areas. The vlaves are Pneumatically operated from the pilot container and can be installed remotely (outside the protected space) or locally (adjacent to the cylinder bank).

Hygood Inergen iFLOW New and Replacement Selector Valve 65mm Technical Specifications and Information

• Valve bore size: 65 mm (2 1/2 in.)
• Valve construction: Steel
• Valve connection (threaded): Threaded NPT Female inlet
  NPT Male outlet
• Pneumatic port connection: 1/4 in. BSPP
• Working temperature range: -20 °C to 50 °C
• Mounting position: Horizontal or vertical
• Nominal actuation pressure: 100 bar
• Maximum working pressure: 140 bar
• Minimum actuation pressure: 60 bar
• Maximum actuation pressure: 115 bar
