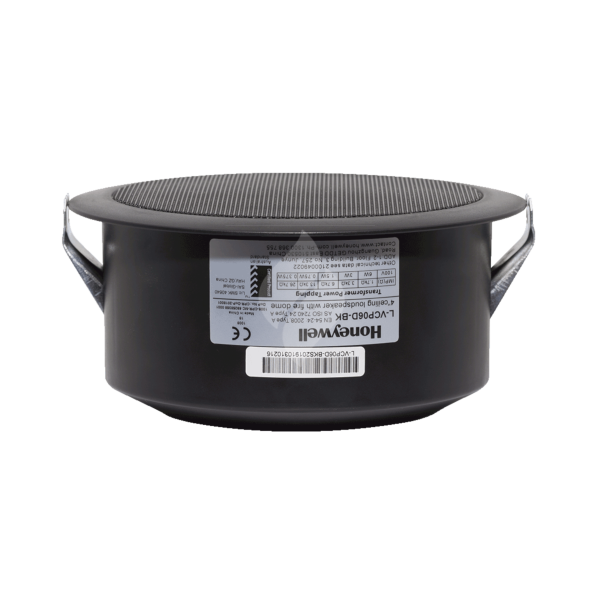

Honeywell PA Ceiling Speaker Black EWIS OWS Notifier Fire System 6W 100V 4 Inch (L-VCP06D-BK)
Honeywell PA Ceiling Speaker Black 6W 100V 4 Inch EWIS OWS Fire System Notifier (L-VCP06D-BK)
SKU
L-VCP06D-BK
Honeywell PA Ceiling Speaker Black EWIS OWS Notifier Fire System 6W 100V 4 Inch (L-VCP06D-BK) is available to buy in increments of 1
FSP Can Supply Honeywell PA Ceiling Speaker Black 6W 100V 4 Inch EWIS OWS Fire System Notifier (L-VCP06D-BK).
The L - VCP06D is a recessed and surface mount (with optional backing plate) ceiling loudspeaker which is designed specifically for the Australian PA-VA (Public Address and Voice Alarm) markets, which encompases EWIS and OWS systems. with High audio quality and certification to AS ISO 7240.24 for flush and surface mount installations, the L-VCP06D is suitable for most applications.
With a frequency response range tailoured to the PA applications, the l-VCP06D is suitable for speech, music and alarm reproduction. With low harmonic distortion and excellent sustention of high sound pressure level at all power settings, the L - VCP06D loudspeaker can provide accurate and intelligible broadcasts of PA messages and evacuation signals.
The low-profile design of the L - VCP06D loudspeaker makes it unobtrusive and ideal for indoor use such as in offices, shopping centers, schools, hospitals, hotels and restaurants.
The L - VCP06D is certified to AS ISO 7240.24 for flush mount and uses the same speaker for the surface mount installation, making it cost effective and compliant to the latest National Construction Code (NCC) requirements. It meets the SPL requirements of the NCC for residential applications achieving 100dB SPL compliance.
The L - VCP06D is easily removed without the risk of damaging ceiling tiles, due to its custom spring fit system.
Having easy to adjust power taps with an enclosed terminal block and a low profile of 70mm makes this loudspeaker easy to install even with limited ceiling space.
Honeywell PA Ceiling Speaker Black Fire System EWIS OWS Technical Specifications and Information
| Rated Power | 6 W (maximum power 9 W), 100 Volt line transformer |
| Transformer Power Taps | 0.375W, 0.75W (default), 1.5W, 3W, 6W |
| Sound Pressure | 91 dB ± 2 dB SPL @ 1 W, 1 m, pink noise per AS ISO 7240.24 |
| Maximum SPL | 100.5 dB @ 6W, 1m, 100V, 250Hz-20kHz 106.5 dB @ 6W, 0.5m, 100V, 250Hz-20kHz |
| Effective Frequency Response | 200 Hz - 15kHz (speaker installed in surface mount box) |
| Speaker Driver Unit | 100mm (4-inch) dual-cone |
| Operating Temperature | - 25 °C to + 55 °C |
| IP Rating | Type A (AS7240.24), IP21 |
| Storage Temperature | - 40 °C to + 70 °C |
| Humidity | < 95 % RH, non-condensing |
| Recessed Mount Dimensions | 160 mm x 75 mm (Diameter x Depth) (Recess 70 mm) |
| Optional Surface Mount Dimensions | 280 mm x 75 mm (Diameter x Depth) |
| Weight | 0.66 kg |
| Ceiling Cut-Out | 140 mm (Diameter) |
| Ceiling Thickness | 9mm to 25 mm |
| Colour | White RAL9003, Black RAL 9004 |
| Material | Housing, Frame, and Surface Mount Box (Flame Retardant ABS) Grille (Powder Coated Steel) |
Honeywell PA Ceiling Speaker Black EWIS OWS Fire System Data Sheet
Honeywell 100v PA speaker L VCP06D Notifier AU DS Rev01 0818 V05
Honeywell 100v PA speaker L VCP06D speaker installation notes au
