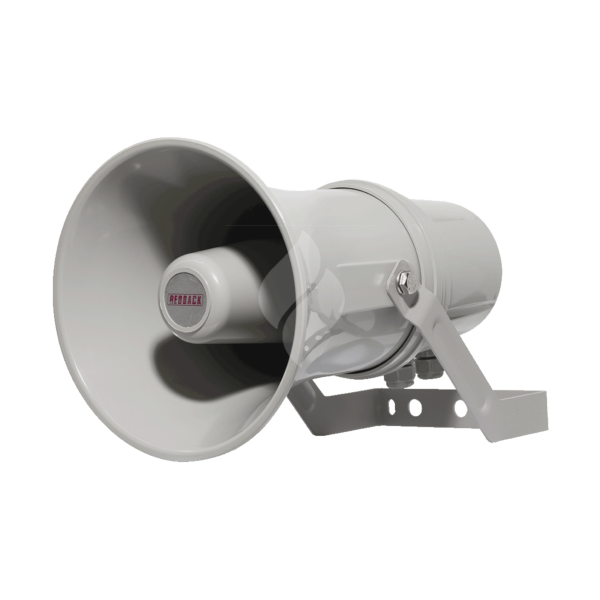

Redback Horn PA Speaker EWIS IP66 with Fire System 10W 100V (CF2053G)

FSP Can Supply Redback Horn PA Speaker 10W 100V EWIS IP66 Fire System (CF2053G) is our first One-Shot horn speaker and it is designed to save installers time and money as well as meeting AS ISO7240.24:2015.

Typically to terminate cabling internally on a horn speaker it involves removing three screws on the rear cover, connecting the cable and then re-installing the same screws. As you can imagine, doing this up a ladder can get quite fiddly! The One-Shot horn eliminates screw removal by utilising a patented twist lock mechanism. The installer simply twists off the rear cover, connects the cabling and twists the cover back on! The labor savings by using the One-Shot horn on a large job are significant.

To make it even easier, we’ve also incorporated our patented dog leg mounting bracket which eliminates the need to separate the horn from the bracket during installation.

The One-Shot horn is primarily used for fire and evacuation systems where a high degree of speech articulation and program clarity is paramount. Typical applications include schools, train and bus stations, airports, car parks and plant rooms.

Redback Horn PA Speaker Fire System EWIS IP66 Technical Specifications and Information

Rated Noise Power	10 Watts (100V line)
Power Taps & Impedance (100V line)	1.25W (8kΩ), 2.5W (4kΩ), 5W (2kΩ), 7.5W (1.33kΩ), 10W (1kΩ)
Sensitivity	98dB (1W @ 1m), 86dB (1W @ 4m)
Maximum Sound Pressure Level	110dB (10W @ 1m), 98dB (10W @ 4m)
Frequency Response	250Hz - 10kHz, 500Hz - 4kHz 0±5dB
Coverage Angle (-6dB)	500Hz: 88°, 1000Hz: 127°, 2000Hz: 79°, 4000Hz 58°
Environmental Type	B (for outdoor applications as per standard)
Speaker Component	Aluminium voice coil former
Mounting Depth	275mm
Mounting Method	Wall bracket with mounting holes
Line Monitoring	Yes, 22μF bipolar capacitor
Applicable Cable	2.5mm2 (14AWG) max conductor area
Connection	4 way screw terminal
Finish	Flame retardant ABS (Absolac 300 MFR)
IP Rating	IP66
Operating Temperature	-25°C to +55°C (±2°C)
Dimensions	180Ø x 275Dmm
Weight	1.8kg
Quantities	8 per carton, 144 per pallet.
