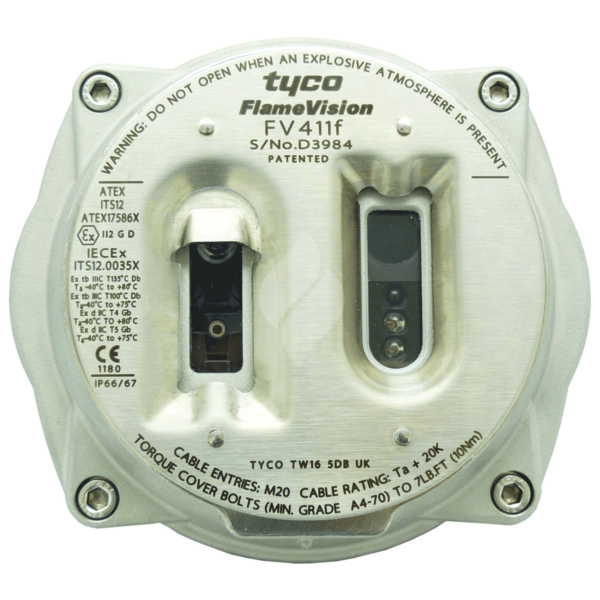

Vigilant FlameVision FV411f No Camera (516.300.411)

The FLAMEVision FV400 Series Flame detectors are triple IR flame detectors that provide wide area flame detection of hydrocarbon fueled fires with excellent immunity to false alarms.

Other variants of the detector offer an in-built CCTV camera which transmits a "detector's eye view" of the protected area to a CCTV monitor. Superimposed onto the CCTV is the video overlay showing alarm and status information.

The FV400 Series of detectors has three flameproof variants as follows:

1. FV411f - No camera
2. FV412f - PAL camera
3. FV413f - NTSC camera

1. 4-20 mA Current Loop
2. MX Loop
3. Video Output (FV412f and FV413f)
4. MODBUS (RS485)
5. Fire and Fault Relays
6. Conventional Interface

The detectors have heaters to keep the detector windows clear of ice and mist. The FV400 Series of detectors is highly configurable to provide versatile detectors for all applications. The most common options are set using DIP switches with more advanced options set using the FV Consys.

Technical Specifications

Mechanical - Detector

Dimension: 155.5 mm H x 153 mm W x 92 mm D
Weight : 4 kg
Gland entry: 2 x M20
Material: Stainless steel 316L, ANC4BFCLC to BS3146: Part 2
Guard/label plate: Stainless steel 316S16 to BS1449: Part 2
Screws external: Stainless steel 316 A4
Detection window: Sapphire
Camera window: Toughened glass

Mechanical - Bracket

Dimension: 181 mm H x 125 mm W x 95 mm D
Material: Stainless steel 316S16 to BS1449: Part 2
Weight: 1.54 kg

Environmental

Operating temp: -40°C to +80°C
Storage temp: -40°C to + 80°C
Operating temp of camera: -10°C to +50°C
Storage temp with camera: -20°C to + 70°C
(operating temperature is reduced for T5 risks)
Relative humidity : 99% (non condensing)
Enclosure: IP 66
Flameproof certification: ATEX Ex II 2 G D , IECEx & FM *1

EN54 Approval

CPD EN54-10:2002 + A1:2005
FV400 is classified as Class 1 on the Extended and Normal range settings.
FV400 is certified as Class 3 on the Half range setting.
FV300 is classified as Class 1

Camera Specification

Composite video: (1 V p-p) into 75 Ohm via twisted pair balum
Horizontal resolution: Standard 450 TVL
Light sensitivity (-30 IRE): 0.3 Lux

Detector performance

Range (0.1m² n heptane): FV400 65 m, FV300 50 m
Field of view: 90° horizontal, 85° vertical

Electrical

Supply voltage: 15 to 30 Vdc
Current consumption: 12 mA quiescent 22 mA Alarm
(24 Vdc - interface dependant)
Camera: 85 mA@24 V
Window Heater: 245 mA @ 24 V
External supply required only for camera, heater or MODBUS options
Connections: 2.5 mm2 (14AWG) Terminals
