Fike 80L IG-541 200bar or 300bar Cylinder with Valve with Exchange, refill and testing Proinert (CYL-80L-IG541-FIKE)

FSP Can Supply Fike 80L IG-541 200bar or 300bar Cylinder Proinert with Valve Exchange, refill and testing (CYL-80L-IG541-FIKE IG71-080-200-541, IG71-080-300-541) steel, seamless gaseous fire suppression containers, filled with Inert Gas.

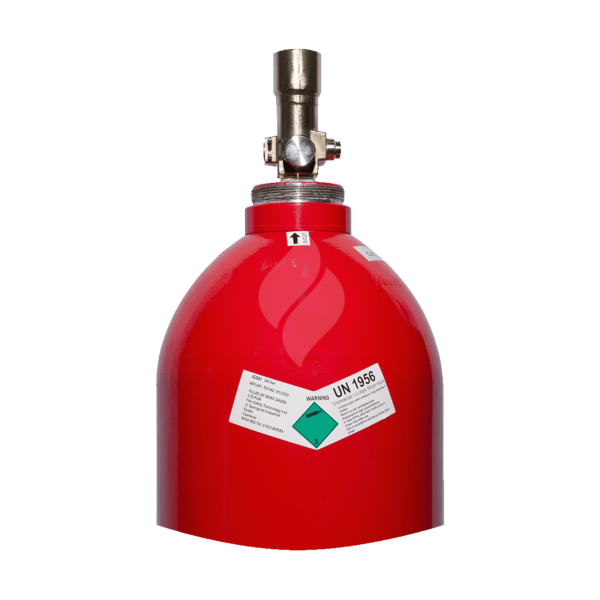

Each filled cylinder comes with an actuator and a ProInert Valve Assembly, which includes a combined pressure gauge and switch device to allow visual pressure indication and cylinder pressure monitoring by a fire control panel. Each cylinder can be mounted either upright or horizontally.

Fike 80L IG-541 200bar or 300bar Cylinder Exchange, refill and testing with Valve Technical Specifications and Information

Mounting Position: Upright

Cyilnder Size:	80 Liter (water capacity)
Cylinder (approximate) Height:	1910 mm (75 in)
Cylinder (approximate) Width:	285.75 mm (11.25 in)
Cylinder Part Number:	IG71-080-200-541 IG71-080-300-541
Cylinder – Pressurization Level:	200 bar at 15.6°C 300 bar at 15.6°C
Temperature Limitation: (ISO 14520, EN 15004 & EN 12094)	-20°C (minimum) 50°C (maximum)
Agent Capacity:	16.7 m3 (23.9 kg) @ 200 bar 23.1 m3 (33.2 kg) @ 300 bar
Cylinder Rating:	EN 1964-2
Cylinder Actuation Methods:	Electric/Pneumatic – Input from Actuator Package/Control Panel Manual/Pneumatic – Input from Push Knob on Actuator Package
Cylinder Color:	Signal Red
Tare Weight:	136 kg (300 lbs) approximate
Gross Weight:	159 kg (350 lbs) approximate

Fike Proinert IG 541 MSDS 2015
