Ansul & Hygood Inergen 3/4 Inch Acoustic Discharge Nozzle New & Replacement IG-541 (448417)

Ansul & Hygood Inergen 1 & 1/2 Inch Acoustic Discharge Nozzle New & Replacement IG-541 (445710)

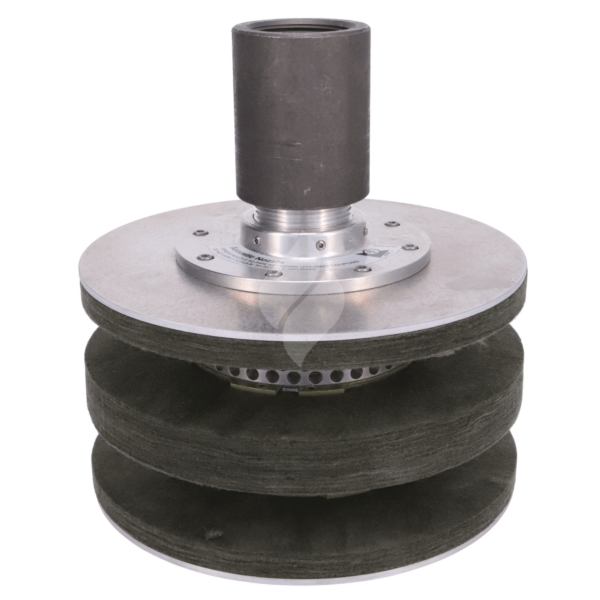

Ansul Inergen Acoustic Discharge Nozzle IG-541 New & Replacement (445710)
SKU
445710
Ansul & Hygood Inergen 1 & 1/2 Inch Acoustic Discharge Nozzle New & Replacement IG-541 (445710) is available to buy in increments of 1

FSP Can Supply Ansul Inergen Acoustic Discharge Nozzle IG-541 New & Replacement (445710). The Ansul and Hygood Accoustic Nozzles are designed to decrease the acoustic footprint of Inergen agent during a discharge.

With Data Centres providing more and more essential services, Inergen Gas Suppression systems are being increasing utilised in these applications. With the data being stored on higher capacity disks, these disks become more suseptable to vibration and movement, such as the interference by sound power and sound pressure.

Data center operators should be reviewing acoustics within their facilities and the Fire Suppression systems should form a part of this review.

Ansul Inergen Acoustic Discharge Nozzle New & Replacement Technical Specifications and Information

  • System Usage:
  • discharge pattern: 360 degree
  • Materials:
    • Body: Aluminum
    • damping materials: fiberglass and wire wool
    • orifice pipe assembly: Steel
    • orifice plate: brass
  • Dimensions:
    • Height with pipe coupling:12.0in. (305mm)
    • Height without pipe coupling:8.8in. (224mm)
    • Width: 8.5in. (216mm)
  • Weight:
    • With pipe coupling: 7.4 lb (3.4 kg)
    • Without pipe coupling: 5.1 lb (2.3 kg)
  • Area coverage per nozzle: 32.0 ft (9.8 m)
  • Protected height: 20.0 ft (6.1 m)
  • Installation distance from ceiling: 12 in. (305 mm)
  • Available in DN40 (1.5 in.) National Pipe Thread (NPT) sizes
Ansul Hygood Inergen Acoustic Discharge Nozzle one and half inch dimensions 445710

Ansul Inergen Acoustic Discharge Nozzle New & Replacement Data Sheet

Spec Sheet Icon Ansul Hygood Inergen Acoustic Discharge Nozzle 448417 F 2016267

Note:

  1. Orifice size is required when ordering.
  2. Maximum Orific Size is 17mm
  3. Use the appropriate Orifice Pipe Assembly depending on the pipe threads used in the system pipework.
