Vigilant DIM800 Detector Input Module (555.800.012.S)
$287.27

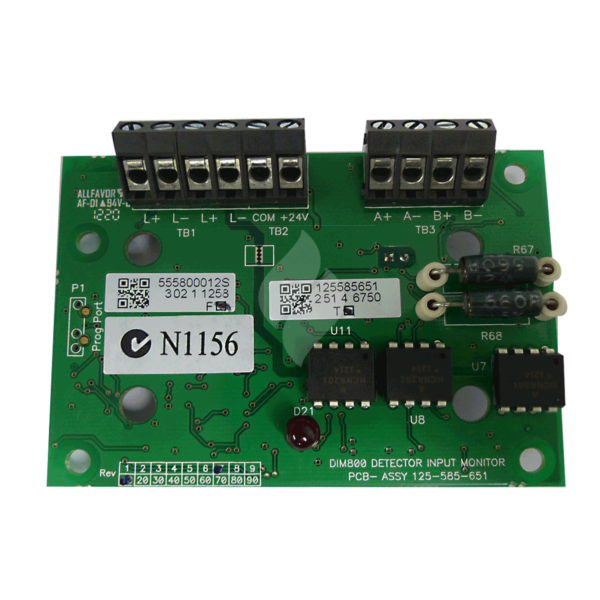

DIM800 Detector Input Module
SKU
DIM800
The DIM800 Detector Input Module interfaces two collective detector circuits onto the MX addressable loop. Each circuit can support 3mA of detector quiescent current and requires a 4K7 OHm End Of Line resistor. The two circuits may be recognized as a single point (MX4428) or two separate points (MX1). Refer to the specific MX fire alarm panel specification. The DIM800 requires a suitably rated and separately protected external 24V to power the detector circuits. Part Number 555.800.012.S
Click here for DIM800 Input Module Datapage
Specification
Click here for DIM800 Input Module Datapage
