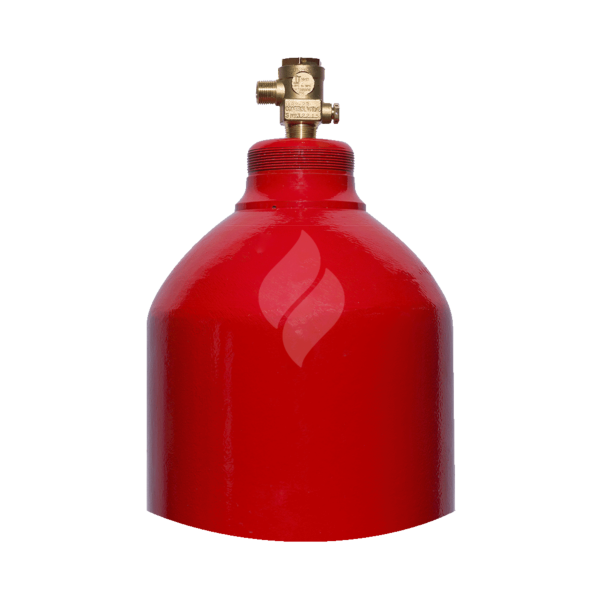

DAB 100lb C02 Cylinder with DAB2 Control Valve DIN477 Exchange, refill and testing Carbon Dioxide
DAB 100lb C02 Cylinder Carbon Dioxide Exchange, refill and testing DAB2 Control Valve DIN477 (CYL-100LB-CO2-DAB2-DIN477 D10963/D DAB/2)
SKU
CYL-100LB-CO2-DAB2-DIN477
DAB 100lb C02 Cylinder with DAB2 Control Valve DIN477 Exchange, refill and testing Carbon Dioxide is available to buy in increments of 1
FSP Can Supply DAB 100lb C02 Cylinder Carbon Dioxide Exchange, refill and testing DAB2 Control Valve DIN477 (CYL-100LB-CO2-DAB2-DIN477 D10963/D DAB/2) seamless steel gas Containers with Valve.
Our Exchange Cylinders come with hydrostatically tested, refurbished, cylinders and valves. Our exchange Cylinders are all tested within the last 12 months, so you get years more service without having to re-test your cylinders.
The DAB Valves on these cylinders are suitable for marine use as well as industrial land-based systems.
DAB 100lb C02 Cylinder Exchange, refill and testing Technical Specifications and Information
| Cylinder Type: | 100lb (45kg, 68L water capacity) CO2 |
| Valve Type: | DAB2 (D10963/D) |
| Cylinder Thread: | 1 Inch NPT |
| Valve Syphone tube thread: | 3/4in. 20TPI Whit Form |
| Valve Weight: | 0.63 kg |
| Valve Outlet Thread: | 1/2in. CO2 (W21.8 x 1/14” DIN 477) |
| Burst Disk Pressure: | 190 bar |
| Valve Max Working Pressure: | 140 bar |
| Valve Body Material: | Brass |
| Valve Operating Temperature Range: | -20°C to +50°C |
FSP CO2 Carbon Dioxide Gas Safety Data Sheet 2016
FSP CO2 Carbon Dioxide Gas Safety Data Sheet 2016Applications:
| Battery Rooms | Electric Generators | Ovens |
| Flammable Liquids Storage | Coating Machines | Dip Tanks & Drain Boards |
| Engine Test Cells | Underfloor Areas | Motors |
| Printing Presses | Fur Storage Vaults | Switchgear Equipment |
| Solvent Recovery Equipment | Dust Collectors | Transformer Vaults |
| Record Storage | Wave Solder Machines | Ducts |
| Wet Benches | Spray Booths | Hydraulic Pump Units |
