Wet Chemical ID Sign is to place near a wet chemical fire extinguisher also has a brief description of the Extinguisher.

ID Sign Wet Chemical

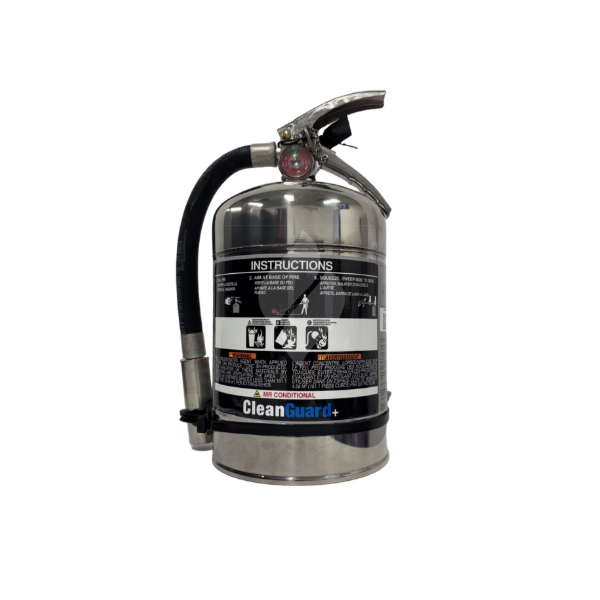

Ansul Magnetic Resonance Safe Fire Extinguisher (FE13NM)


Ansul's FE13NM CLEANGUARD Magnetic Resonance fire extinguisher is specially designed for hazard where MR is present, such as MRI Rooms and other Scientific  or Medical Laboratories.

Ansul Magnetic Resonance Safe Fire Extinguisher (FE13NM) is available to buy in increments of 1

The CLEANGUARD FE13NM is a non-magentic fire extinguisher specially designed for hazard where Magnetic Resonance is present, such as Medical Imaging and MRI. The Extinguisher was tested by Magnetic Resonance Safety Testing Services  and shown to be Magnetic Resonance Conditional safe to 3.0 tesla. The extinguisher can be safely mounted within the MRI room and other hazards that require a reliable MR Conditional fire extinguisher.

The agent (HFC-236fa) is proven to be electrically non-conductive (will not damage sensitive electrical equipment like computers), leaves no residue, requires no clean-up, and has no ozone depletion potential.

The UL/ULC approved fire extinguisher is a completely MR Conditional stainless steel shell and MR Conditional valve, hose and nozzle.

The one-piece multi-language mylar labels have step-by-step pictograms to provide the user with easy-to-read operating instructions and the fire types (hazard Classes) the extinguisher is rated for.

HFC-236fa agent is a colourless, odorless, electrically non-conductive “clean” agent which discharges as a liquid and flashes to a gas, providing an effective firefighting range. HFC-236fa will not cause thermal shock or damage to delicate electronic equipment.

Ansul FE13NM Specifications (432893 & 433214)

Part No. 432893 (UL) 433214 (ULC)
Agent Capacity (HFC-236fa) 13.25 lb (6 kg)
Charged Weight 20 lb (9.1 kg)
Discharge Time 13.5 seconds
Agent Flow Rate 1.12 lb/sec. (0.51 kg/sec.)
UL/ULC Rating 1-A:10-B:C
Effective Range 14-16 ft (4.3-4.9 m)
Dimensions Height 25 1/2 in. (648 mm)
Width 9 in. (229 mm)
Depth 7 in. (178 mm)
Fire Suppression Capability UL Panel (Class A) 8 ft x 8 ft (2.4 m x 2.4 m)


Ansul Magnetic Resonance Clean Agent Fire Extinguisher, Data Sheet

Spec Sheet Icon asnul magnetic resonance clean agent fire extinghuisher fe13nm f-2004100

Ansul Non-Magnetic Clean Agent Fire Extinguisher, Safety Data Sheet

Spec Sheet Icon Asnul Magnetic Resonance Fire Extinghuisher FE13NM HFC-236FA Safety Data Sheet
