Ansul Electrical Actuator Conduit Version Sapphire & FM-200 Novec-1230 & HFC-227ea for master container actuation (304205030)
Ansul Sapphire & FM-200 Novec-1230 & HFC-227ea Electrical Actuator Conduit Version for Activation of the master container, comes with UL Bridge Rectifier and Placement Switch (TLX-US) (304205030)
SKU
304205030
Ansul Electrical Actuator Conduit Version Sapphire & FM-200 Novec-1230 & HFC-227ea for master container actuation (304205030) is available to buy in increments of 1
FSP Can Supply Ansul Sapphire & FM-200 Novec-1230 & HFC-227ea Electrical Actuator Conduit Version for Activation of the master container (304205030) One electric actuator can be used to electrically activate the master valve. After the master valve is actuated, agent pressure from the tank pneumatically actuates the remaining tanks through the pilot ports and the Penumatic Actuators attached to each subordinate cylinder.
Contact FSP if you need Ansul Electical Actuators
The electrical actuator is fitted with an internal placement and tamper switch to provide a fault indication at the panel if incorrectly fitted or or removed, such as during maintenance./p>
A manual, manual-pneumatic, pneumatic, or CPM actuator fits on top of the electrical actuator.
Ansul Sapphire & FM-200 Electrical Actuator Conduit Version Technical Specifications and Information
| Product Codes: | 304205030 (Country of Origin: USA)
304205040 (Country of Origin: China) |
| Body: | Mild steel and dull nickel |
| Body finish: | Electroless nickel plate |
| Actuation pin: | Stainless steel |
| Loose nut: | Brass CZ121 (CW614N) |
| Actuation type: | Latching |
| Reset requirement: | Manually with reset tool supplied |
| Connection: | 1 in. BSPP |
| Nominal voltage: | 24 VDC |
| Minimum firing voltage: | CE 20.5 VDC UL 864 65% of nominal voltage (15.6 VDC) |
| Minimum current: | 0.32 A |
| Nominal current: | 0.43 A |
| Maximum current: | 0.54 A |
| Maximum monitoring current: | 30 mA |
| Minimum duration of trigger signal: | 1 s |
| Duty: | Continuous |
| Manual actuation force: | 50 N (11.00 Ibf) |
| Nominal pin travel: | 4.57 mm (0.18 in.) |
| Electrical connection: | 1/2 in. NPT Female conduit with inbuilt bridge rectifier |
| Back EMF protection: | Bridge rectifier |
| Working temperature range: | -20 °C to 50 °C (-4 °F to 122 °F) (CE) -18 °C to 54 °C (0 °F to 130 °F) (UL and FM) |
| Life span: | 25 years |
| Testing: | 100% check on start / finish position |
| Maximum humidity: | 80% to 90% RH non-condensing |
| Ingress Protection class: | IP54 |
| Approvals and listings: | UL, FM, and CE |
| Certification: | EN 12094-4 |
| CE certification number: | 0832-CPR-S0072 2831-CPR-S0072 |
| Year of CE marking: | 2019 |
| CE marking requirements: | Manufacturer’s mark, part number, serial number, 24 VDC , 0.90 A, CE0832 or CE2831 |
| Method of marking: | Laser or engraved |
| Overall size: | 132 mm (L) x 73 mm (W) (5.19 in. (L) x 2.87 in. (W)) |
| Weight: | 1 kg (2.2 lb) |
| Actuation force / PIN travel: | Minimum 66.4 N at 1 mm
from unactivated Minimum 60.7 N at 2 mm from unactivated Minimum 55.0 N at 3 mm from unactivated Minimum 49.3 N at 4 mm from unactivated |
Maintenance
Remove electric actuator from valve assembly.
- Check for free movement of placement switch (circular section with cross surrounding firing pin)
- Confirm control panel alarms when switch is released or in the un-installed state; and ceases to alarm when the switch is operated or in the installed position.
- Apply 24 VDC and verify that the energized pin position is 0.01 in. to 0.02 in. (0.3 mm to 0.5 mm) from the base of the actuator.
- Terminate the supply voltage and reset the electrical actuator by screwing the plastic reset tool into the base.
- Once reset, remove reset tool. Then reinstall onto valve assembly (see installation instructions).
Ansul Sapphire & FM-200 Electrical Actuator Conduit Version Data Sheet

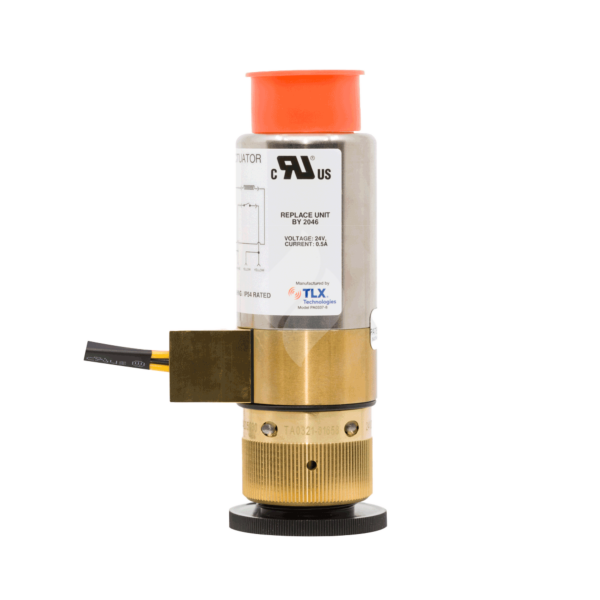

Ansul Actuator Electical conduit version with internal placement switch 304205030
