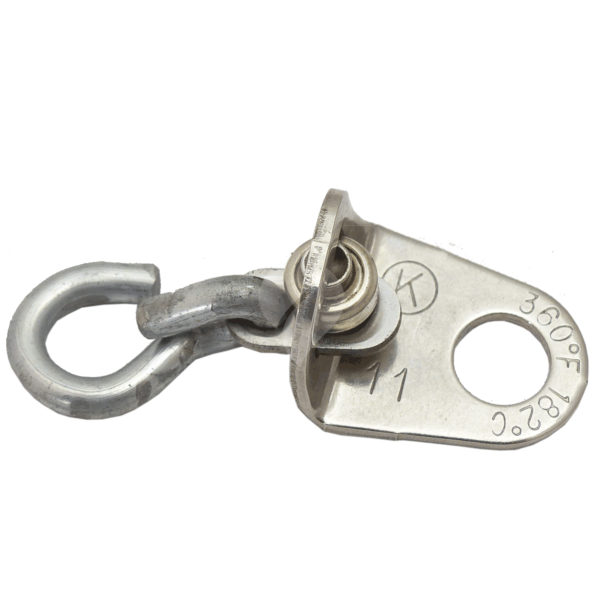

The Model A-PC Fusible Links are fixed temperature releasing devices that are thermally actuated. They are tested and listed for use with ANSUL restaurant fire suppression systems through Underwriters Laboratories (UL/ULC). The fusible links are designed for straight pull load applications. The A-PC link can withstand a maximum continuous load of 40 lb (18.1 kg) and a minimum continuous load of 5 lb (2.3 kg). Both the A-PC links operate in the same manner. When the fusible alloy melts due to exposure to heat, the fusible assembly compresses, allowing the assembly to release from between the two halves of the fusible link. The link is then separated by the tension force exerted by the continuous duty load. Part Number 439237
