Ansul 850Lb (343 Ltr) Cylinder Mounting Bracket Sapphire & FM-200 IG-541 & HFC-227ea Assembly Without UNISTRUT (570336)
Ansul Sapphire & FM-200 IG-541 & HFC-227ea 850Lb (343 Ltr) Cylinder Mounting Bracket Assembly Without UNISTRUT (570336 311.205.019)
SKU
570336
Ansul 850Lb (343 Ltr) Cylinder Mounting Bracket Sapphire & FM-200 IG-541 & HFC-227ea Assembly Without UNISTRUT (570336) is available to buy in increments of 1

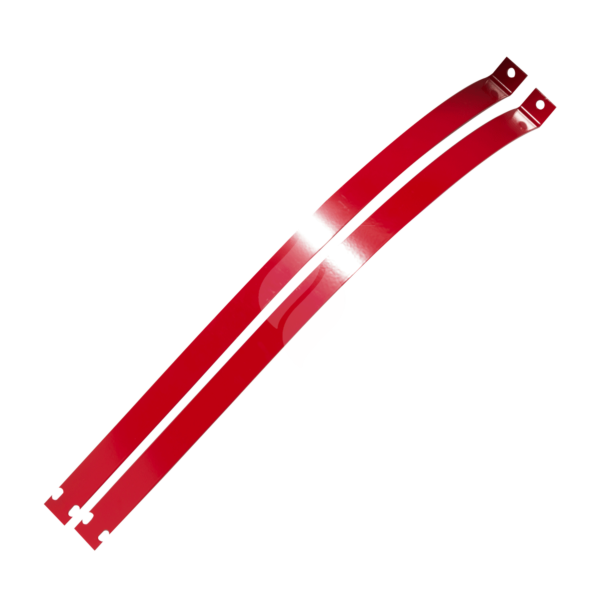

FSP Can Supply Ansul Sapphire & FM-200 IG-541 & HFC-227ea 850Lb (343 Ltr) Cylinder Mounting Bracket Assembly Without UNISTRUT (570336 311.205.019) The bracket Assembly Consists of two bracket half straps with a nut and bolt to connect them together.
The UNISTRUT "back channel", is not supplied. The approved UNISTRUT type is Series P1000T 41mm x 41mm or equal.
Two Straps and back channels are required per cylinder to hold them secure during discharge events.
Ansul Sapphire & FM-200 Cylinder Mounting Bracket 850Lb (343 Ltr) Technical Specifications and Information
- Container Size: 850Lb (343L)
- Weight: 4.7Kg (10.4lb)
- Material: Mild Steel
- Finish: Red polyester powder or
Black plastic powder - Mounting: Unirax/Unistrut ch10 channel
| Container Size | No. of Unistrut Channels | Height From Floor to Bracket mm (in) |
| 343 litre (850Lb): 171.5 to 343 kg (378 to 7 lbs.) |
2 | 300, 1100 (11.75”, 43.25”) |
Ansul Sapphire & FM-200 850Lb (343 Ltr) Cylinder Mounting Bracket Data Sheet
Ansul Sapphire FM200 Cylinder Mounting Brackets 570085 570092
