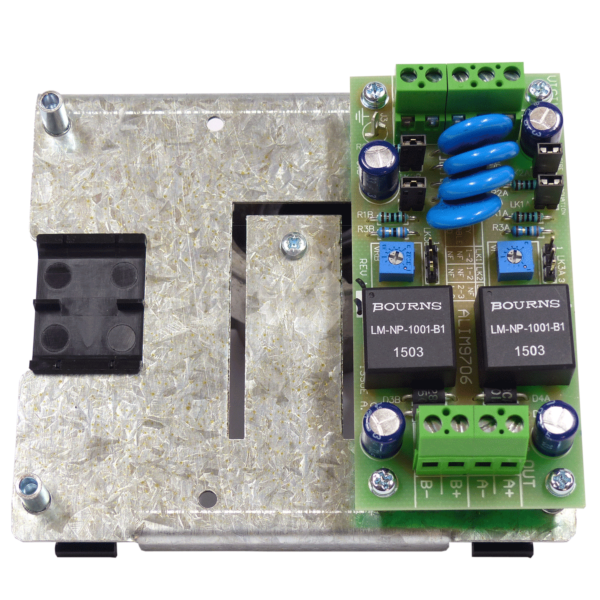

Vigilant ALIM9706 (DIN) Audio Line Isolator Module (PA0646)
$599.15
Audio Line Isolator Module ALIM9706 is an audio isolation and balancing/matching device with variable or fixed gain.
SKU
PA0646
Audio Line Isolator Module ALIM9706 is an audio isolation and balancing/matching device with variable or fixed gain. It was designed for use with QE90 and Microvac systems, and also for general audio isolation purposes. The ALIM9706 provides independent isolation of two audio signals (channels), with the gain separately selectable for each channel.The ALIM9706 can be used for various purposes, including:
ï‚· As an isolation and/or line balancing transformer (with optional volume control) for background music inputs connecting to the Local Inputs of QE90 Amplifiers, music input of T-GEN 50, etc. Refer Fig.1 below.
ï‚· To allow spurs on the WIP speech and PA speech busses in a networked QE90 system. Refer Fig. 4 and 5 below.
ï‚· To provide the isolation and voltage reduction required when connecting the amplifier primary or 100V line output of a QE90, T-GEN 50 or similar system into the low level input of another amplifier (or vice versa). Refer Figure 3 below. Part Number PA0646
Specification
Click here forPA0646 ALIM9706 Datapage
