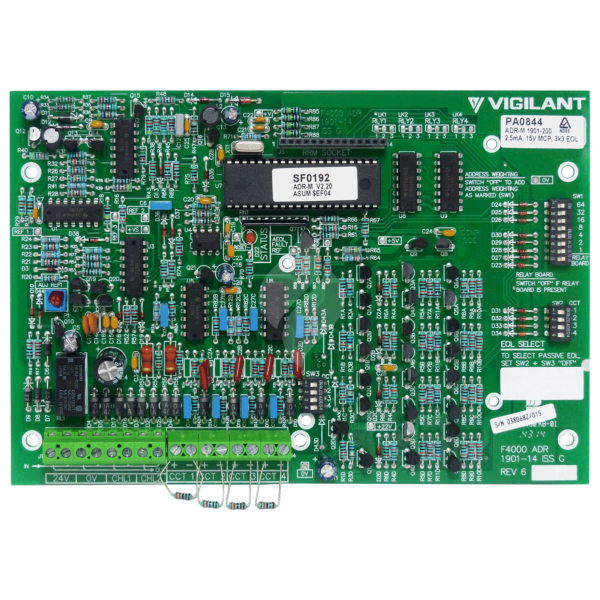

Vigilant ADR-M 2.5mA 3k3 ELD for I.S. Detectors PA0844
$831.96
The PA0844 version of ADR-M is used as a retrofit where existing detector circuits use a resistor ELD in the range of 1k5 to 3k3 ohms (restrictions apply), and Intrinsically Safe applications – since the intrinsically safe Active ELDs (EOL002ZEx) are no longer available for the standard ADR-M and the replacement units (EOL002B) are not intrinsically safe approved.
The PA0844 version of ADR-M is used as a retrofit where existing detector circuits use a resistor ELD in the range of 1k5 to 3k3 ohms (restrictions apply), and Intrinsically Safe applications – since the intrinsically safe Active ELDs (EOL002ZEx) are no longer available for the standard ADR-M and the replacement units (EOL002B) are not intrinsically safe approved. The module must be set for passive ELD (SW2 off). As there are no R2 resistors fitted, these do not need to be cut. PartNumber PA0844
About Vigilant Fire Alarm
There is a Vigilant Fire Panel for virtually every application.
Simple to use, cost-effective, and a range of advanced features usually found on more complex systems.
Vigilant Fire Panels can support analogue addressable detectors, such as the 814PH (Smoke & Heat) and 814CH (CO & Heat) fire detectors.
Each of these detectors incorporates multiple sensors which may operate independently, or used in heat enhancement mode for faster response to a flaming fire, allowing optimum detection with the best nuisance alarm suppression.
Key Features:
Detector pre-alarm sensing for early warning of a potential alarm
Compensation for soiling and changes in ambient conditions
Logging “detector dirty alert” when compensation limits are about to be exceeded, to highlight the need for maintenance to be carried out
Heat sensor able to be programmed to act independently as a heat detector
Vigilant History
Originally founded in 1914 as the Vigilant AutomaticFire Alarm Company, Ltd., Vigilant patented the Vigilant Thermostat Fire Detector and continued to develop market-leading innovations that earned it an impressive reputation for saving lives.
A respected regional brand of Johnson Controls, they are a leader in the Australian and New Zealand fire detection markets with AS and NZS product approvals.
