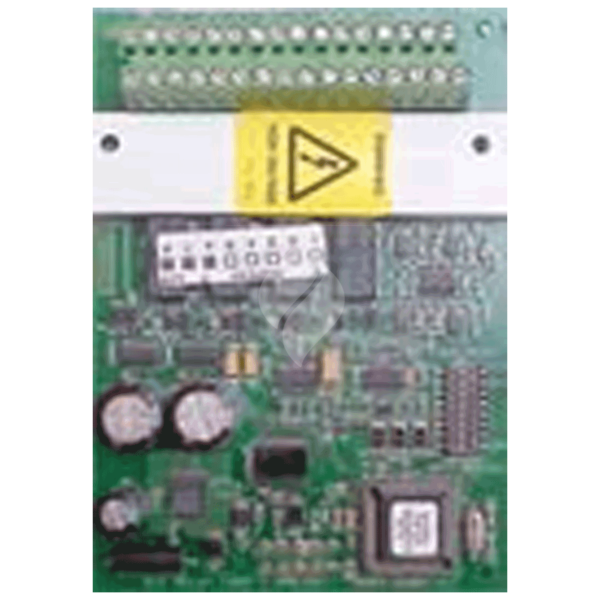

Simplex 4x Relay Card 4x FB Flat Version for 4100ES & 4100U (4100-3204)
$564.40
4x Relay Card 4x FB Flat Version
SKU
4100-3204
Two 4-way relay cards are available for use in SIMPLEX 4100ES and 4100U systems. Each is a PDI 'flat' format card, occupying a single position. Fit directly in 4100ES/4100U expansion bay.
Do not require a motherboard
Features
- The 4100-3204 provides four independent relays, each providing two sets of clean changeover contacts rated at 2A and fused at 3A
- The 4100-3204 also has four unsupervised feedback inputs (ON/OFF detection only)€¢ All fuses are standard 20 x 5mm cartridge type
- All terminals have 2.5 mm sq. wiring capacity
- Both cards have individual LEDs to show relay operation
Possible Markings on Board: 566-401
Spares Group: Internal slave modules
