VTI K85 Valve 190bar & 250bar CO2 with DIN477 (K85-50.0-DIN477)
VTI K85 Valve DIN477 190bar & 250bar CO2 (K85-50.0-DIN477)
SKU
K85-50.0-DIN477
VTI K85 Valve 190bar & 250bar CO2 with DIN477 (K85-50.0-DIN477) is available to buy in increments of 1

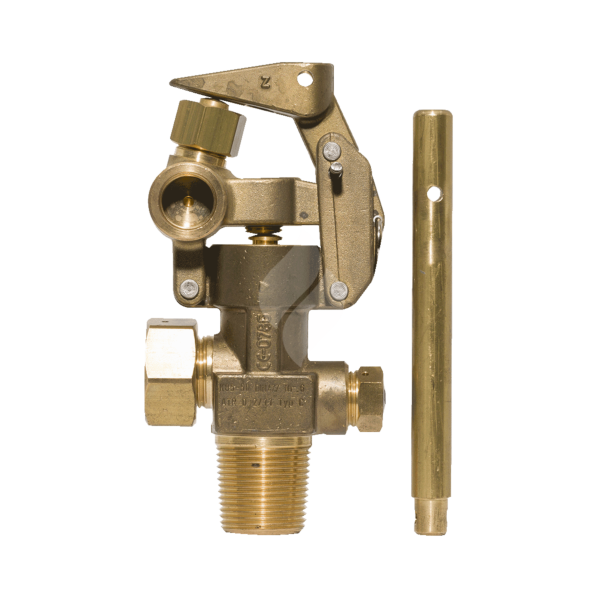

FSP Can Supply VTI K85 Valve DIN477 190bar & 250bar CO2 (K85-50.0-DIN477) is designed as a quick-release valve with internal integrated pneumatic activation.
Although the K Valves are suitable for IG-541, IG-55 & Argon, within Australia they are only used within Carbon Dioxide Gaseous Fire Suppression Systems.
| Supported Gases | CO2, Argon, Inergen, IG-541, FM200, Novec-1230 |
| Operating Temp | -20°C / +50°C |
| Valve Type | Spindle Vavle (Non-rotating) |
| Valve Height (excluding lever) | 130mm |
| Dip Tube | 16mm x1.5mm |
| Burst Pressure | 190bar or 250bar |
| Outlet | W21,8 x 1/14“ acc. to DIN 477-1 No. 6 for type K85-50.0 |
| Min Pneumatic Release Pressure | 30bar |
| Max Pneumatic Release Pressure | 240bar (with appropriate burst disk) |
| Maintenance | A leak test should be performed at least twice a year |
VTI K85 Valve 190bar & 250bar CO2 Data Sheet
VTI K85 50+K85 13 Instruction Manual Rev5
