DAB Control valve 1 inch NPT 190bar D10963N 1 D10963/N/TS

DAB Control Valve 1/2in. CO2 with 1 in. NPT (D10963/N/TS)

VTI Carbon Dioxide K85 50 Valve DIN477 250bar 1 K85-50.0-DIN477

VTI K85 Valve 190bar & 250bar CO2 with DIN477 (K85-50.0-DIN477)

VTI K85 Valve 190bar & 250bar CO2 with 1in. – 11 ½in. NGT (K85-50.0-NGT)

VTI K85 Valve 1in. – 11 ½in. NGT 190bar & 250bar CO2 (K85-50.0-NGT)
SKU
K85-50.0-NGT
VTI K85 Valve 190bar & 250bar CO2 with 1in. – 11 ½in. NGT (K85-50.0-NGT) is available to buy in increments of 1

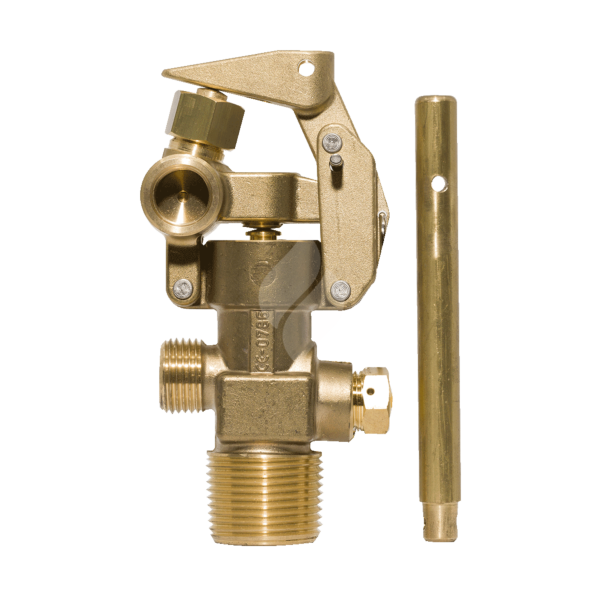

FSP Can Supply VTI K85 Valve 1in. – 11 ½in. NGT 190bar & 250bar CO2 (K85-50.0-NGT) is designed as a quick-release valve with internal integrated pneumatic activation.

Although the K Valves are suitable for IG-541, IG-55 & Argon, within Australia they are only used within Carbon Dioxide Gaseous Fire Suppression Systems.

Supported GasesCO2, Argon, Inergen, IG-541, FM200, Novec-1230
Operating Temp-20°C / +50°C
Valve TypeSpindle Vavle (Non-rotating)
Valve Height (excluding lever)130mm
Dip Tube16mm x1.5mm
Burst Pressure190bar or 250bar
OutletW21,8 x 1/14“ acc. to DIN 477-1 No. 6 for type K85-50.0
Min Pneumatic Release Pressure30bar
Max Pneumatic Release Pressure240bar (with appropriate burst disk)
MaintenanceA leak test should be performed at least twice a year
VTI Carbon Dioxide K85 50 Valve Dimensions Labels

VTI K85 Valve 190bar & 250bar CO2 Data Sheet

Spec Sheet Icon VTI K85 50+K85 13 Instruction Manual Rev5
