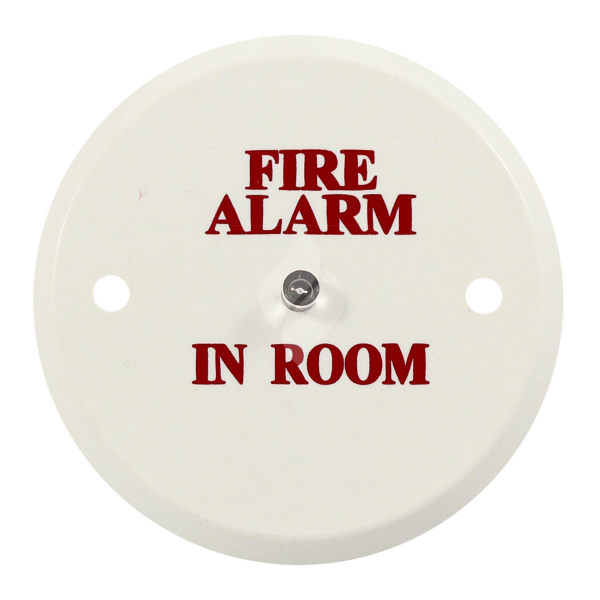

SIMPLEX Remote LED Mapnet `Room'(2098-1113)
$27.70
SIMPLEX Remote LED Mapnet `Room'(2098-1113)
SKU
2098-1113
The Simplex 2098-1xxx range of remote indicators provide remote indication of an alarm condition on a detector fitted to a 4098-97xx detector base.
These remote indicators are not suitable for connection to any other MAPNET II or IDNet module.
They are used where the fire detector is installed in an inaccessible location, and indication of alarm must be provided in an easily accessible area. For example, where the detectors are in roof spaces or cupboards, under the floor, or in hotel rooms, and indication is required in the room or corridor.
Part Number 2098-1112 is labelled as "Fire Alarm in Room"
Specifications
| Operating Voltage: | 1.8Vdc Typ. (from 4098-97xx Base) |
| Alarm Current (min.) | 1.6mA |
| Alarm Current (max.) | 25mA@45°C 15mA@75°C |
| Luminous Intensity: | as per AS2362.25-2004 |
| Relative Humidity: | 95% (n/cond) max. |
| Ambient Temp.: | -5°C to +75°C |
