SIMPLEX Remote LED Mapnet `Concealed Space'(2098-1111)
SKU
2098-1111

The Simplex 2098-1xxx range of remote indicators provide remote indication of an alarm condition on a detector fitted to a 4098-97xx detector base.

These remote indicators are not suitable for connection to any other MAPNET II or IDNet module.

They are used where the fire detector is installed in an inaccessible location, and indication of alarm must be provided in an easily accessible area. For example, where the detectors are in roof spaces or cupboards, under the floor, or in hotel rooms, and indication is required in the room or corridor.

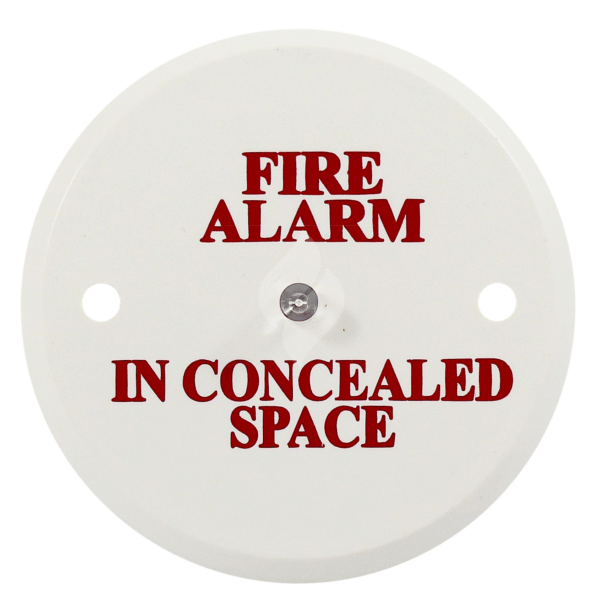

Part Number 2098-1111 is labelled as "Fire Alarm in Concealed Space"

Specifications

Operating Voltage:1.8Vdc Typ.
(from 4098-97xx Base)
Alarm Current (min.)1.6mA
Alarm Current (max.)25mA@45°C
15mA@75°C
Luminous Intensity:as per AS2362.25-2004
Relative Humidity:95% (n/cond) max.
Ambient Temp.:-5°C to +75°C
