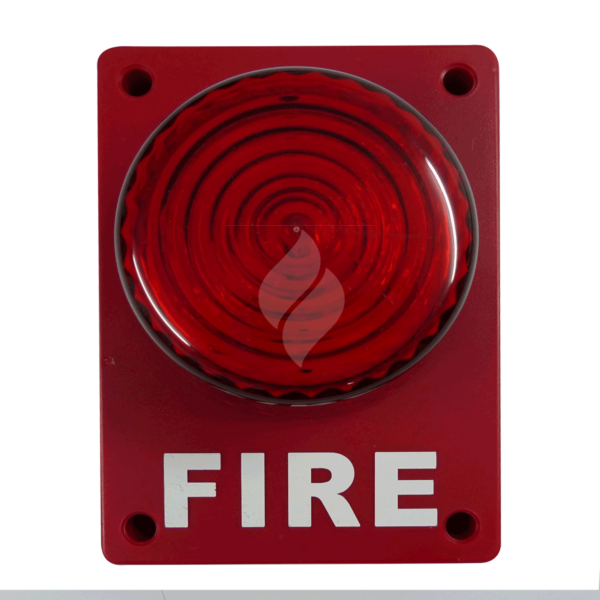

The Tyco Vigilant fire strobe (40020) is designed to be mounted in an external wall. It is weather resistant and made of fire resistance ABS with a rubber seal in the base which provides weather protection. Screws and caps are supplied. Used for fire emergency alarms.
Operating Voltage | 20 to 30Vdc |
Inrush Current | 290mA @ 24Vdc |
Operating Current | 140mA @ 24Vdc |
Flash Energy | 2.6J |
Operating Temp | -5°C to +60°C |
Relative Humidity | 10 to 95% (non-cond.) |
Cable Termination | 2x1.5mm2 |
Dimensions (HWD) | 180x130x85mm |
Mounting | 5.5mm Diameter x4 holes 150x100mm |
Weight | 350g |
Ingress Protection | IP54 |
Part Number | 40020 |
Vigilant Red Surface Mount Fire Alarm external weather resistant Strobe
